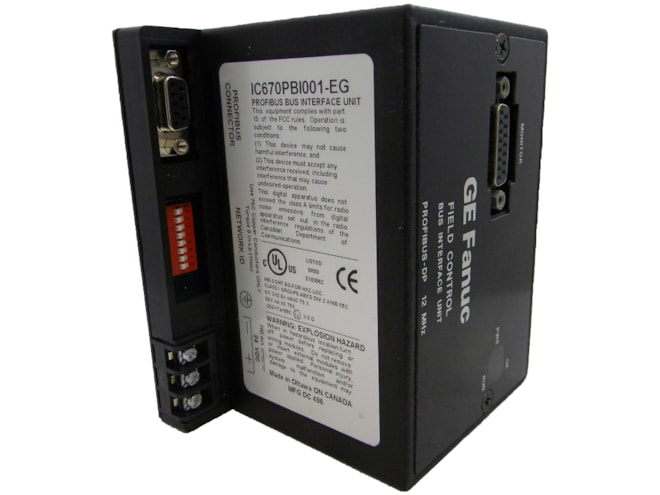

Remanufactured GE-Emerson IC670PBI001 Field Control Profibus Bus Interface Unit

24VDC rated input voltage.

Remanufactured

$948.00
Availability
  • Additional 12 ready to ship within 2-3 days

New Surplus

$3,400.00
Availability
  • 1 in stock

Repair

$663.60
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC670PBI001RMN
Manufactured

Features

  • 18 to 30VDC voltage range
  • Profibus supported protocol
  • 7.7W input power
  • Ports:
    • Profibus: One 9-pin D-sub connector
    • Programmer: One 9-pin D-sub connector
  • 4.45W power dissipation
  • 10ms max. holdup time
  • Linear bus topology
  • 180,000hrs operation MTBF reliability
  • PWR, RUN, OK status LEDs
  • Shielded twisted pair cable network medium

The GE-Emerson IC670PBI001 Field Control Profibus Bus Interface Unit interfaces Field Control I/O modules to a Profibus I/O bus. The intelligent processing capabilities of the Profibus Bus Interface unit allow the configuration of features such as fault reporting, selectable input and output defaults, analog scaling and analog range selection for the modules in the station. In addition, the Profibus Bus Interface Unit performs diagnostic checks on itself and its I/O modules, and relays diagnostic information to the host (if configured for fault reporting) and to a Hand-held Programmer.

The Bus Interface Unit mounts on a Bus Interface Unit Terminal Block. The Bus Interface Unit can be removed and replaced if necessary without removing the wiring or reconfiguring the I/O station.
