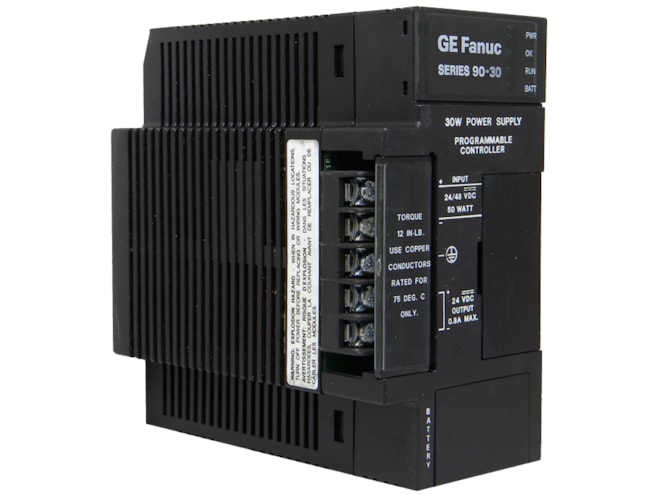

Repair GE-Emerson IC693PWR322 Series 90-30 Power Supply

3 outputs; 12VDC input voltage.

Repair

$502.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$718.00
Availability
  • 7 in stock
  • Additional 10 ready to ship within 2-3 days
Part Number
  • IC693PWR322REP
Manufactured
Product Specs

Features

  • Output power:
    • 5VDC relay: 15W max.
    • 24VDC relay: 15W max.
    • 24VDC isolated: 20W max.
  • Output voltage:
    • 5VDC: 15W max.
    • 24VDC relay: 15W max.
    • 24VDC isolated: 20W max.
  • 4A peak inrush current, 100ms max.
  • Input power:
    • 90VA with VAC input
    • 50W with VDC input
  • Input voltage range, DC:
    • Start: 21 to 56VDC
    • Run: 18 to 56VDC
  • 24VDC/48VDC nominal rated voltage

The GE-Emerson IC693PWR322 Series 90-30 Power Supply is a 30W supply designed for a 12VDC nominal input. It will accept an input range of 9.6 to 15.0VDC. It mounts in a standard power supply slot in any IC693 PLC baseplate. This power supply provides three separate outputs:

  • +5VDC
  • +24VDC Relay Output for power circuits on IC693 Relay Output modules
  • +24VDC Isolated for powering Input modules

The + and - wires from the 12VDC power source connect to the top two protected terminals on the powers supply terminal board. Connect the + wire to the top terminal and the = wire to the second terminal. A connection diagram is printed on the front of the power supply module next to the terminal board.
