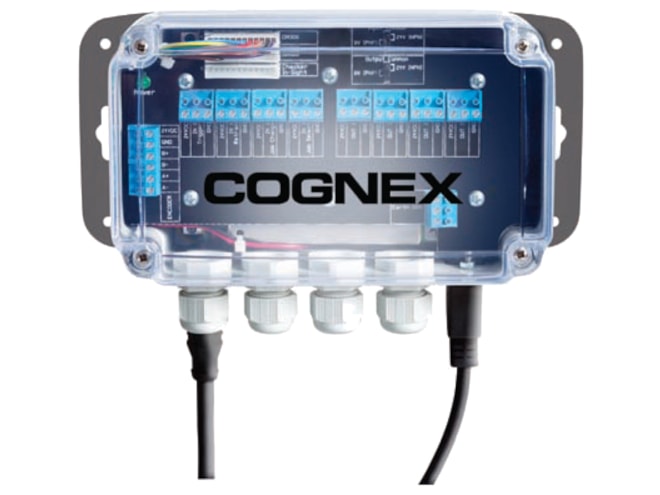

Repair Cognex DMA-CCM-1-US Connection I/O Module

Connects directly to Cognex Readers via standard M12 I/O cable.

Repair

$353.00
Availability
  • Usually ships in 2-3 weeks
Part Number
  • DMA-CCM-1-USREP
Manufactured
Product Specs

Features

  • Power input:
    • Range: 88~264VAC
    • Typical: 1.3A/115VAC, 0.8A/230VAC
  • DC power output:
    • 24 VDC
    • 1.75A average (42W), 2.2A peak
    • Short circuit and Overload protected
  • Each 24VDC terminal has a 0.20A self resetting fuse
  • Environment:
    • 32 to 104°F operating
    • 14 to 140°F storage
    • 95% RH non-condensing

The Cognex DMA-CCM-1-US Connection I/O Module breaks out all of the available I/O from the Cognex Reader. Pluggable screw terminal blocks are provided for Reader I/O, and internal jumpers support I/O Common power supply connections. The module powers typical systems of Reader, Sensors, and External Illumination. A self-contained 24VDC power supply is included, with a standard IEC C14 AC power cord connection.
