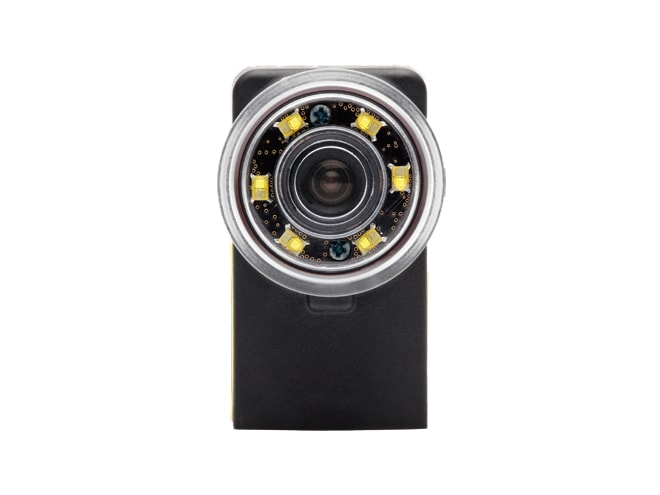

Repair Cognex Checker 4G Vision Sensor

Provides direct discrete I/O, power, and Ethernet connections to PCs and networked PLCs.

Repair

What is repair?
$433.00
  • Usually ships in 2-3 weeks
Part Number
  • 4GREP
Manufactured

Features

  • 24AWG, 5m, M12 connector cable (power and I/O
  • Power requirements:
    • Voltage: +24VDC (22 to 26VDC)
    • Current: 250mA max
  • Discrete inputs:
    • Input ON: >10VDC
    • Input OFF: <2VDC
    • Protection: opto-isolated, polarity-independent
  • Encoder inputs:
    • Differential: A+/B+: 5 to 24V (50kHz max) A-/B-: Inverted (A+/B+)
    • Single ended: A+/B+: 5 to 24V (50kHz max) A-/B-: VDC = 1/2 (A+/B+)
  • Discrete outputs:
    • Output: solid state switch
    • Rating: 100mA, 24VDC max.
    • Max. voltage drop: 3.5VDC @ 100mA
    • Max. load: 100mA
    • Protection: opto-isolated, protected from short circuit, overcurrent, and reverse polarity

The Cognex Checker 4G Vision Sensor is available in a version in which all types of inspection tools (presence, measurement, and position personality tools) can be used simultaneously and in three single-personality versions in which only one type of inspection can be used at a time:

  • High-resolution 752 x 480px version with all personalities enabled at the same time
  • Presence-personality only, either 752 x 480px or 376 x 240px version for color applications
  • Single-personality, high-resolution 752 x 480px version
  • Single-personality, high-speed 6000 inspections per minute version
