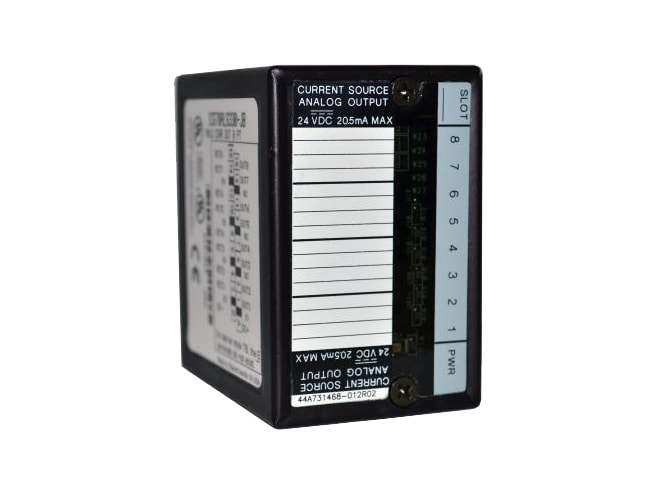

Repair GE-Emerson IC670ALG330 Field Control Analog Output Module

8 current-loop outputs on a common power supply.

Repair

$1,380.00
Availability
  • Usually ships in 3-5 business days

New Surplus

$2,200.00
Availability
  • 5 in stock

Remanufactured

$1,725.00
Availability
  • 1 in stock
  • Additional 11 ready to ship within 2-3 days
Part Number
  • IC670ALG330REP
Manufactured
Product Specs

Features

  • Power supply range:
    • 18 to 30VDC
    • 24VDC typical
    • 10% max. ripple
  • 32 to 131°F operating temperature range
  • 1500VAC for 1 minute, 250VAC continuous isolation to ground and logic
  • 85mA max. current drawn from BIU power supply
  • 250mA max. current drawn from external power supply (with all 8 outputs at 20mA)
  • 16bits resolution
  • 14bits magnitude data size
  • Accuracy:
    • at 77°F: 0.05% typical, 0.1% max.
    • from 32 to 131°F: 0.15%
  • 0.0 to 24.48mA output current range limits
  • 0.3125μA per count max. analog resolution
  • 2000pF max. output load capacitance
  • 0.5H max. output load inductance
  • 0 to 1250 Ohms user load (temp. and power supply voltage dependent)
  • 1.5mS typical update time
  • 1.0 to 3.5mA open wire output current threshold

The GE-Emerson IC670ALG330 Field Control Analog Output Module provides eight channels of analog current outputs with user-configurable scaling for each channel. The module requires a separate source of power for the outputs.

A single LED indicator shows module status:

  • ON: normal operation
  • Intermittent flashing: module fault
  • OFF: no backplane power, no user power, or fatal fault

During operation, the module receives engineering units output data from the Bus Interface Unit (BIU). It scales this data according to its calibration and configured scaling parameters, then converts the data to output current in the range of 0mA to approximately 20.48mA.

If the scaled data is below the minimum limit of the digital to analog converter, the module sets the output current to 0mA. If the scaled data is above the maximum limit of the digital to analog converter, the module sets the output current to approximately 20.48mA.
