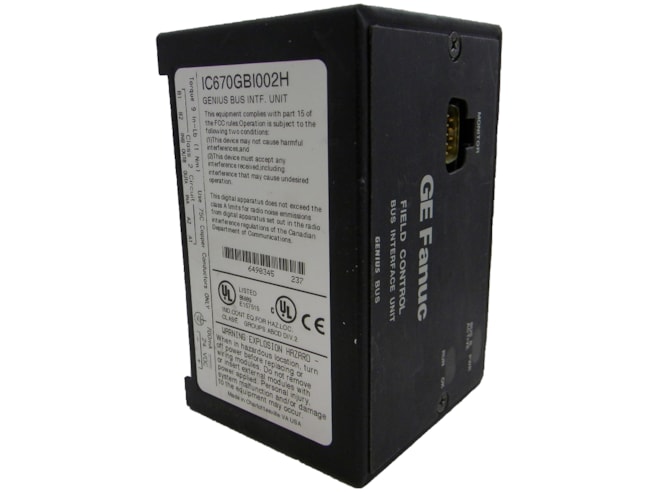

GE-Emerson IC670GBI002 Field Control BIU Terminal Block

18 to 30VDC supply voltage range.

New Surplus

$5,250.00
Availability
  • Out of Stock

Remanufactured

$1,128.00
Availability
  • Additional 67 ready to ship within 2-3 days

Repair

$789.60
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC670GBI002
Manufactured
Product Specs

Features

  • 115 VAC, 125 VDC nominal rated voltage
  • Voltage range:
    • 90 to 135 VAC
    • 105 to 150 VDC
  • 24VDC nominal supply voltage
  • 47 to 63Hz frequency
  • 16.8W power consumption
  • Power at 115VAC: 48 V-A max. at full load
  • 15 to 50 Amps peak inrush current, 3mS max.
  • 6.5 VDC power supply output, +/-5%
  • 10ms holdup time (20ms max.)

The GE-Emerson IC670GBI002 Field Control BIU Terminal Block is a bus interface unit that must be mounted on a 7.5mm x 35mm DIN rail that has a conductive (unpainted) finish for proper grounding. When using multiple rail sections, they must be properly aligned. The DIN rail should be mounted at least 4.25in from a wireway or other obstruction on the wiring side of the BIU, allowing for more space if I/O module wiring is very stiff.

The BIU has a metal grounding strip beneath the terminal block. This must be used with a grounded conductive DIN rail. It is not compatible with A versions of I/O Terminal Blocks, which do not have a metal grounding strip. Using the BIU with A version I/O blocks will result in a system with poor noise immunity.

For added vibration resistance, the DIN rail should be installed on a panel using screws spaced approximately 6in apart. For maximum vibration resistance, drill two holes for the BIU Terminal Block mounting ears as shown below. After mounting the terminal block on the DIN rail, install 3/8-inch (9.525mm) #6 screws (not supplied) through the mounting ears.
