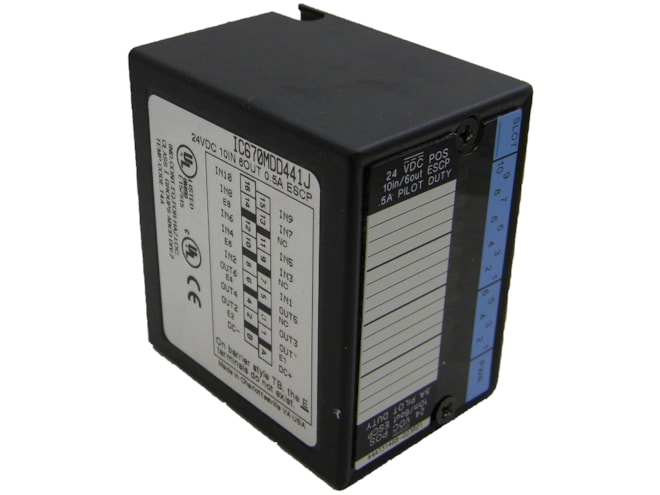

GE-Emerson IC670MDD441 Field Control Mixed Discrete I/O Module

Provides 10 discrete input circuits and 6 discrete output circuits sharing the common line.

New Surplus

$4,800.00
  • 7 in stock
What is new surplus?

Remanufactured

$483.00
  • 1 in stock
What is remanufactured?
Part Number
  • IC670MDD441
Manufactured
Product Specs

Features

  • 24VDC rated input/output voltage
  • 0 to +30VDC input voltage range
  • 15 to 30VDC output voltage range
  • 8.0mA user input current per point @ 24VDC
  • 0.5A max. output current per point
  • Isolation to case, ground, logic side:
    • 250VAC continuous, 150VAC for 1min
    • No isolation between individual points in a group
  • 1 LED indicator per point shows individual point status
  • 1 Bi-color LED per point indicating on/off status of:
    • Output circuits (green)
    • Short/overcurrent circuit fault (orange)
  • 2.87k typical input impudence
  • +15 to +30VDC on-state voltage

The GE-Emerson IC670MDD441 Field Control Mixed Discrete I/O Module includes electronic short-circuit protection. Each output point also includes electronic overcurrent protection, and generates a fault if either overcurrent or short-circuit conditions exist. The module fault is then reported to the bus interface unit (BIU).

Power for the module itself comes from the power supply in the BIU. An external source of DC power must be provided for the switches that power the loads. The common line on DC power is also the return for the input circuits.
