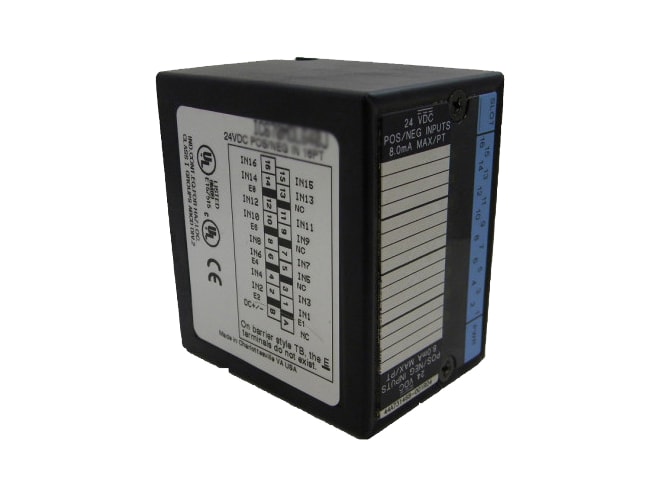

Repair GE-Emerson IC670MDL644 Field Control Discrete Input Module

Provides a single group of 16 discrete inputs, which may be driven by positive or negative logic.

Repair

$900.00
Availability
  • Usually ships in 3-5 business days

New Surplus

$1,400.00
Availability
  • 15 in stock

Remanufactured

$1,125.00
Availability
  • 5 in stock
  • Additional 105 ready to ship within 2-3 days
Part Number
  • IC670MDL644REP
Manufactured
Product Specs

Features

  • 24VDC rated voltage
  • 0 to 30VDC input voltage range
  • 8.0mA user input current per point @ 24VDC
  • Isolation:
    • User input to logic, user input to frame ground: 250VAC continuous, 1500VAC for 1min
    • Point to point: no isolation between individual points in a group
  • Indicators:
    • 1 LED per point shows individual point status
    • PWR LED indicates field and backplane power are present
  • 80mA current drawn from BIU power supply
  • 3K typical input impedance
  • Voltage:
    • ON state:
      • Positive logic: +15 to +30V
      • Negative logic: -15 to -30V
    • OFF state:
      • Positive logic: 0 to +5V
      • Negative logic: 0 to -5V
  • Current:
    • ON state: 3.0 to 8mA
    • OFF state: 0 to 1.5mA
  • Response time:
    • ON: 25μs typical, 60μs max.
    • OFF: 100μs typical, 150μs max.

The GE-Emerson IC670MDL644 Field Control Discrete Input Module receives power from the BIU for its own operation. An external 24VDC supply is needed to power the input devices. Individual LEDs (logic side), visible through the transparent portion of the module top, indicate the on/off status of each input. The PWR LED is on when field and backplane power are present.

Intelligent processing for this module is performed by the BIU or elsewhere in the system. This includes configuring features such as input defaults and fault reporting. The module has 16 bits (two bytes) of discrete input data. A BIU is required to provide this input data to the host and/or local processor.
