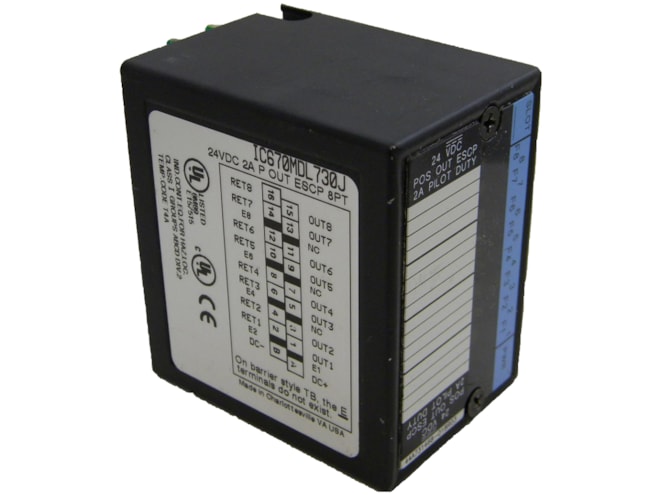

Remanufactured GE-Emerson IC670MDL730 Field Control Discrete Output Module

Provides a single group of 8 discrete outputs.

Remanufactured

$1,125.00
Availability
  • 19 in stock

New Surplus

$2,300.00
Availability
  • 7 in stock
Part Number
  • IC670MDL730RMN
Manufactured
Product Specs

Features

  • 18 to 30VDC user input voltage, 24VDC nominal
  • 17.5 to 29.5VDC output voltage range
  • Continuous load current:
    • 2.0 Amps max. per point
    • 8 Amps max. per module
  • Indicators:
    • Individual point status (green)
    • Individual fault status (yellow) On = fault
    • Internal 5V status from BIU and external supply (green)
  • Isolation (user terminal to logic, user terminal to frame ground, group to group):
    • 250VAC continuous, 1500VAC for 1min
    • No isolation between individual points in a group
  • 125mA max. current drawn from BIU power supply
  • 10 Amps max. inrush current per point for 10mS
  • Nominal range 2.25 to 2.75 Amps stead state overcurrent trip point
  • 0.5V max. output voltage drop
  • 0.5mA at 30VDC max. output leakage current
  • 500μs max. on/off response time
  • 20 Amps for 100μs short circuit response time
  • 1.5mS max. time between retries

The GE-Emerson IC670MDL730 Field Control Discrete Output Module provides electronic and short circuit protection for each point, and generates a fault if either condition exists. Power for the module comes from the power supply in the BIU. An external source of DC power must be provided for the switches that power the loads.

Individual green LEDs (logic side) indicate the on/off status of each output. The green LEDs remain off when user power is not present, regardless of the state of the outputs. Individual yellow LEDs show the fault status of each output. The green PWR LED is on when field and backplane power are present.

Intelligent processing for the module is performed by the BIU or elsewhere in the system. This includes configuring features such as output default and fault reporting. The module has 8 bits (one byte) of discrete output data. A BIU is required to obtain this output data from the host and/or local processor.
