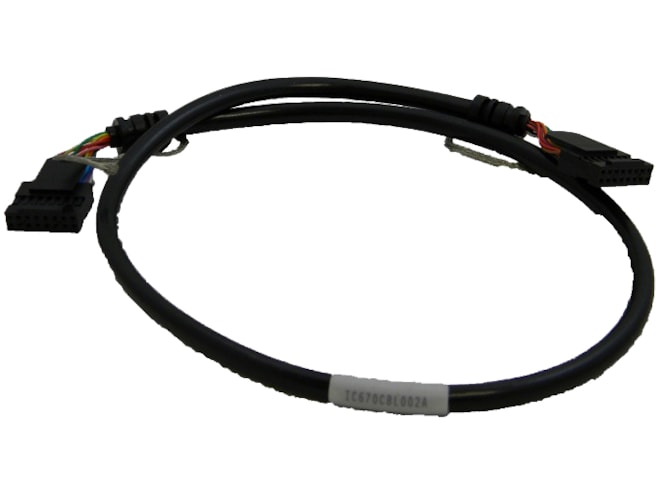

GE-Emerson IC670CBL002 Field Control I/O Expansion Cable

The GE-Emerson IC670CBL002 Field Control I/O Expansion Cable can be used in place of the standard inter-base cable where more space is needed between bases. Only one I/O Expansion Cable can be used per station. The remaining connections must be made using the shorter connectors supplied with the bases.

The cable can connect an I/O base with the Bus Interface Unit or with another I/O base. The cable must be installed so that the direction of data flow is consistent from one base to the next. That is, the cable would connect the "bottom" of one base with the "top" of the next bases if the bases were both oriented the same way.
