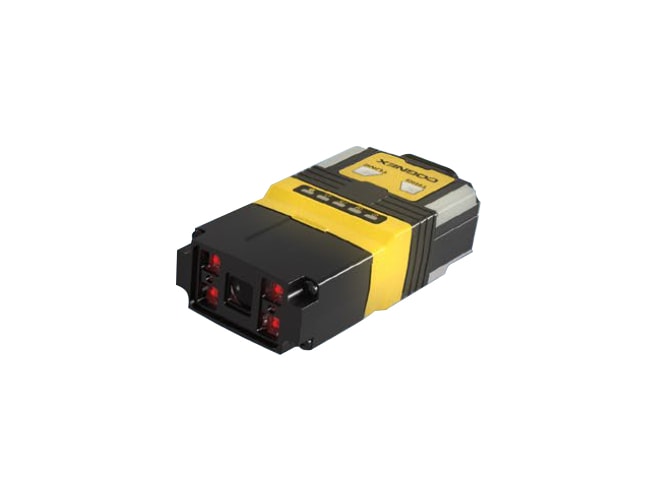

Remanufactured Cognex DMR-280X Fixed Mount Barcode Reader

Reads 1D and 2D label-based codes and DPMs.

Remanufactured

$1,253.00
Availability
  • Additional 2 ready to ship within 2-3 days

Repair

$877.00
Availability
  • Usually ships in 2-3 weeks
Part Number
  • DMR-280XRMN
Manufactured
Product Specs

Features

  • 1DMax, 2DMax, Hotbars, and PowerGrid algorithms and technologies
  • 1/3in CMOS image sensor
  • Image sensor properties:
    • Diagonal 6.21mm
    • 3.45μm square pixels
  • 1440 x 1080px image resolution
  • Electronic shutter speed:
    • Min. exposure: 29μs
    • Max. exposure: Up to 10ms (internal illumination) / Up to 200ms (external illumination)
  • Up to 45Hz acquisition
  • 6.2mm or 16mm high speed liquid lens
  • Aimer with 2 LEDs
  • 2 opto-isolated, 2 configurable inputs & outputs
  • 2 user configurable I/Os
  • Communications:
    • Serial and 1 GB/second Ethernet interface
    • USB-C
    • Keyboard capability

The Cognex DMR-280X Fixed Mount Barcode Reader is designed to perform in a variety of code-reading environments, incorporating AI tuning to ensure high read performance on difficult applications. The reader can provide hands-free code reading in a logistics facility, and decode direct part markings (DPMs) in a manufacturing plant to increase traceability and boost throughput by delivering high read rates. Dynamic auto-focus and advanced high dynamic range imaging allows the reader to operate in the most challenging code-reading environments.
