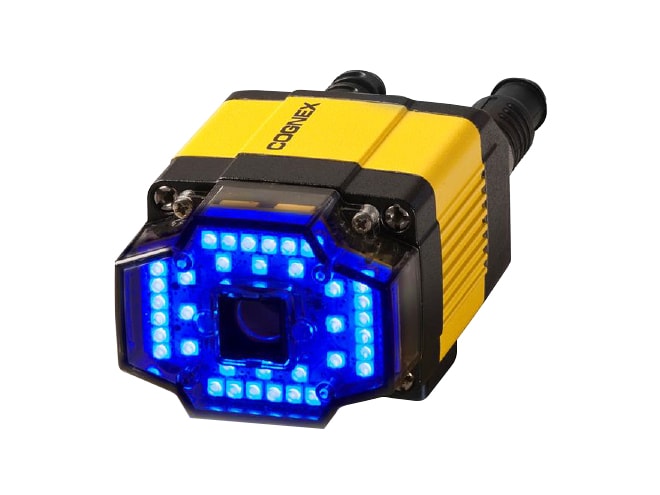

Remanufactured Cognex DMR-300X Fixed Mount Barcode Reader

Reads 1-D, 2-D, and stacked code symbologies.

Remanufactured

$1,695.00
Availability
  • Additional 2 ready to ship within 2-3 days

Repair

$1,187.00
Availability
  • Usually ships in 2-3 weeks
Part Number
  • DMR-300XRMN
Manufactured

Features

  • Resolution
    • Dataman 302: 1280 x 1024
    • Dataman 303: 1600 x 1200
  • Electronic shutter speed:
    • Min. exposure: 5μs (Dataman 302), 12μs (Dataman 303)
    • Max. exposure: 1,000μs with internal illumination/100,000μs with external
  • Up to 60 fps image acquisition at full resolution
  • Lens type:
    • S-Mount 10.3mm F:5 (with optional liquid lens) with IR blocking filter
    • S-Mount 16mm F:9, no IR blocking filter
    • C-Mount 24mm F:6 (with liquid lens only) with IR blocking filter
    • S-Mount 25mm M12 lens, no IR blocking filter
    • C-Mount lenses, with limitations

The Cognex DMR-300X Fixed Mount Barcode Reader offers multiple integrated lighting and lens options, an intelligent auto-tune feature, and multiple resolutions.

Cognex image-based barcode readers decode 1-D and 2-D codes, from printed labels to the hardest to read direct part mark (DPM) codes, delivering high read rates.
