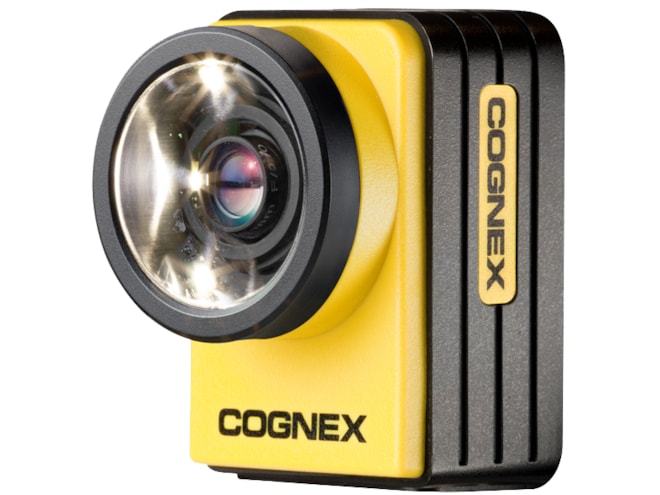

Repair Cognex IS7402-11 In-Sight Vision System
512MB non-volatile flash memory; unlimmited storage via remote network device.
Remanufactured
-
Additional 2 ready to ship within 2-3 days
- IS7402-11REP
- By Cognex
Overview
Features
- 256MB SDRAM image processing memory
- 1/1.8in CMOS sensor type
- 8.7mm diagonal, 5.3 x 5.3µm sq. pixels sensor properties
- 1280 x 1024 pixels max. resolution
- 16µs to 950ms electronic shutter speed
- Rapid reset, progressive scan, full-frame integration acquisition
- 24-bit color depth
- 30 full fps
- M12 or C-mount lens type
- 1 opto-isolated, acquisition trigger input; remote software commands via Ethernet and RS-232C
- 3 general-purpose inputs when connected to the Breakout cable
- 4 high-speed outputs when connected to the Breakout cable
- Status LEDs: network link and activity, power, and 2 user-configurable
Description
The Cognex IS7402-11 In-Sight Vision System performs fast, accurate inspections while its compact footprint easily fits into space-constrained production lines. The modular design is highly field-customizable to most application requirements. The IS7402-11 includes industry leading vision tools such as PatMax RedLine, SurfaceFX, OCRMax, PowerGrid, Hotbars, and color ID tools, enabling it to quickly locate parts and accurately perform necessary inspections. The system is designed with Flexible Image Technology (FIT) to optimize image formation and minimize the need for expensive external lighting. Field-changeable and user-configurable lighting and optics modules provide the user with the flexibility to customize the system for their application.
