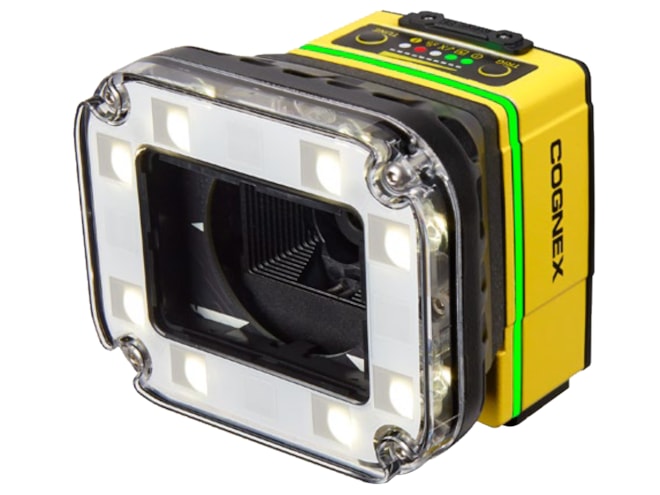

Repair Cognex IS7802M-363-50 In-Sight Vision System

2.3x performance factor; 7.2GB job/program memory on board + 8GB on SD card.

Repair

$3,267.00
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$4,667.00
Availability
  • Additional 2 ready to ship within 2-3 days
Part Number
  • IS7802M-363-50REP
Manufactured
Product Specs

Features

  • 512MB SDRAM image processing memory
  • CMOS, global shutter sensor type
  • 1600 x 1200 pixels resolution
  • Acquisition rate:
    • Monochrome: 53fps
    • Color: 33fps
  • C-Mount, S-mount/M12, autofocus lens type
  • Red, white, IR, or blue internal light color
  • Indicator LEDs:
    • SD card status
    • Pass/fail LED
    • 360-degree viewing indicator ring
    • Network and error LEDs

The Cognex IS7802M-363-50 In-Sight Vision System performs fast, accurate inspections while its compact footprint easily fits into space-constrained production lines. The modular design is highly field-customizable to most application requirements. The IS7402-11 includes industry leading vision tools such as PatMax RedLine, SurfaceFX, OCRMax, PowerGrid, Hotbars, and color ID tools, enabling it to quickly locate parts and accurately perform necessary inspections. The system is designed with Flexible Image Technology (FIT) to optimize image formation and minimize the need for expensive external lighting. Field-changeable and user-configurable lighting and optics modules provide the user with the flexibility to customize the system for their application.
