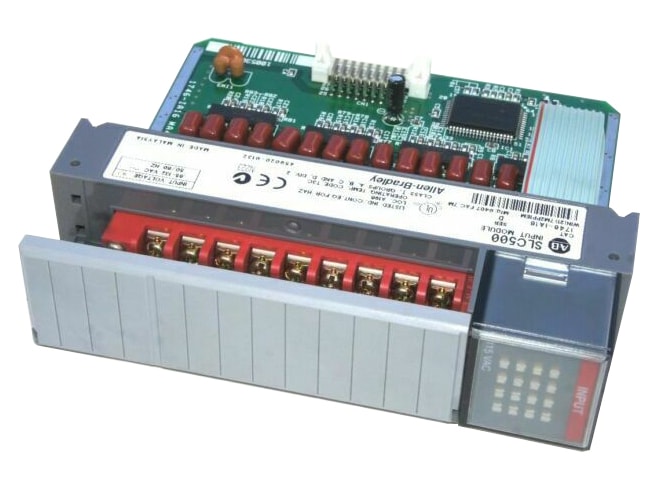

Remanufactured Allen-Bradley 1746-IA16 SLC 500 Digital AC Input Module

16 inputs and points per common.

Remanufactured

$100.00
Availability
  • Additional 57 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-IA16RMN
Manufactured

Features

  • 100/12VAC signal input voltage category
  • 85 to 132VAC operating voltage @ 47 to 63Hz
  • Backplane current consumption:
    • 5VDC: 0.085 Amps
    • 24VDC: 0.0 Amps
  • Max. signal delay:
    • On = 35ms
    • Off = 45ms
  • 30VAC max. off-state voltage
  • 2mA max. off-state current
  • 12mA input current @ 12VAC, nominal
  • 0.8 Amps max. inrush current
  • 0.5ms max. inrush current time duration

The Allen-Bradley 1746-IA16 SLC 500 Digital AC Input Module occupies a single slot on the SLC 500 chassis, providing real-time interface to discrete devices in the process. The module includes built-in input filtering, isolation, and surge protection to efficiently run in harsh environmental conditions.
