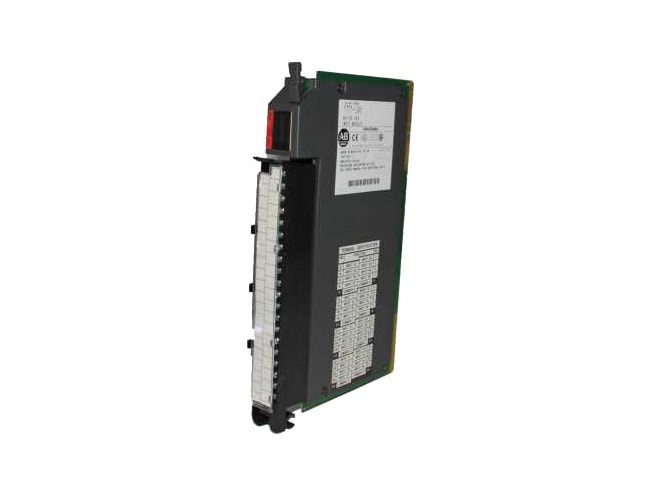

Repair Allen-Bradley 1771-IND PLC-5 AC/DC Input Module

16 inputs per module.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$112.00
Availability
  • 1 in stock
Part Number
  • 1771-INDREP
Manufactured

Features

  • 24VAC @ 50/60Hz; 24VDC nominal input voltage
  • Nominal input current:
    • 7.2mA at 24VAC, 60Hz
    • 6.3mA at 24VAC, 50Hz
    • 3.8MA at 24VDC
  • On-state voltage range:
    • 16V to 30VAC
    • 9V to 30VDC
  • Minimum on-state current:
    • 3.0mA at 10VAC, 60Hz
    • 1.4mA at 9VDC
  • 5VAC at 50/60Hz; 3.7VDC max. off-state voltage
  • Max. off-state current:
    • 1.5mA at 5VAC, 60Hz
    • 0.6mA at 5VDC
  • Input impedance:
    • 0.68uF in parallel with 6.28K (3.9K ohms at 60Hz)
    • in series with 100 ohms

The Allen-Bradley 1771-IND PLC-5 AC/DC Input Module is designed for use with a 1771 Series B I/O chassis. A 1771-ASB remote I/O adapter allows the module to be used with any combination of I/O modules.

The module contains input filtering to limit the effects of voltage transients caused by contact bounce and/or radiated electrical noise.

The module receives power through the 1771 I/O chassis backplane from the chassis power supply. The module requires 250mA from the output of this supply.
