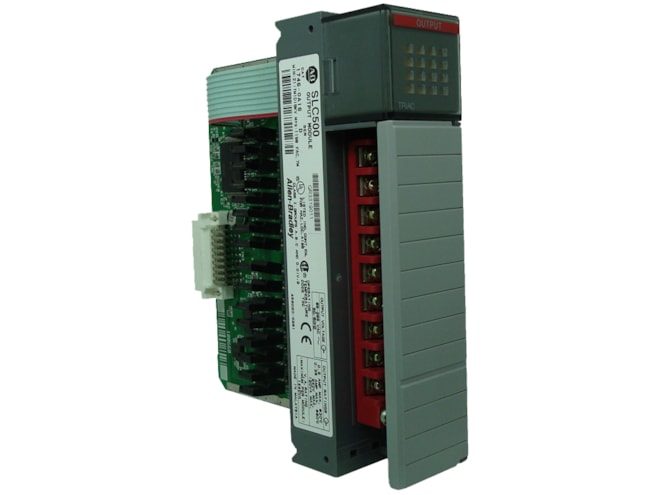

Remanufactured Allen-Bradley 1746-OA16 SLC 500 Discrete AC Output Module

16 outputs; 8 points per common.

Remanufactured

$132.00
Availability
  • Additional 20 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-OA16RMN
Manufactured
Product Specs

Features

  • 120/24VAC signal input
  • 85 to 265VAC operating voltage @ 47 to 63Hz
  • 0.370 Amps backplane current consumption @ 5VDC
  • Signal delay, max. resistive load:
    • ON = 1ms
    • OFF = 11.0ms
  • 2mA max. off-state leakage
  • 10mA min. load current
  • Continuous current per point:
    • 0.50 Amps @ 86°F
    • 0.25 Amps @ 140°F
  • Max. continuous current per module:
    • 8.0 Amps @ 86°F
    • 4.0 Amps @ 140°F
  • 1.50V max. on-state voltage drop @ 0.50 Amps
  • 10.0 Amps for 25ms max. surge current per point

The Allen-Bradley 1746-OA16 SLC 500 Discrete AC Output Module features input filtering, optical isolation, and built-in surge protection to enhance the reliability of operation in noisy industrial environments.
