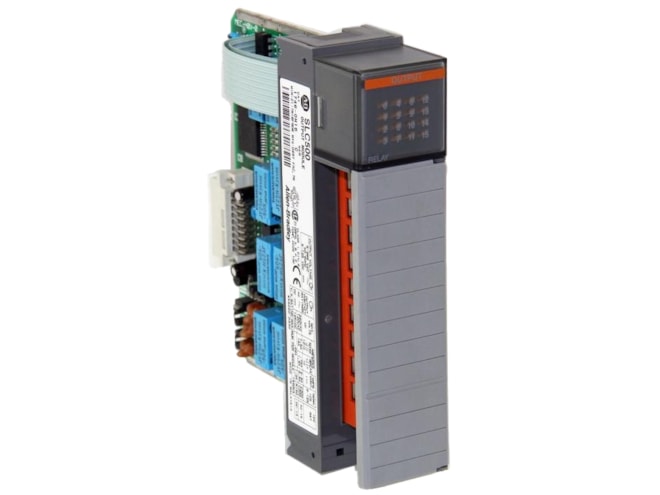

Repair Allen-Bradley 1746-OW16 SLC 500 Discrete Relay Output Module

16 outputs, 8 points per common.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$120.00
Availability
  • Additional 4 ready to ship within 2-3 days
Part Number
  • 1746-OW16REP
Manufactured

Features

  • AC/DC relay voltage category
  • Operating voltage:
    • 5VDC: 5 to 125V
    • 24VDC: 5 to 265V
  • Signal delay, max. resistive load:
    • On = 10.0ms
    • Off = 10.0ms
  • Backplane current consumption:
    • 5VDC: 0.170A
    • 24VDC: 0.180A
  • 0mA max. off-stage leakage
  • 10mA @ 5VDC min. load current
  • Continuous current per module:
    • 16.0A AC
    • 8.0A per common

The Allen-Bradley 1746-OW16 SLC 500 Discrete Relay Output Module includes sixteen normally open (N.O.) relay channels and two output groups. The module is ideal for use in applications where a mix of voltage categories are existing. Use of the module eliminates the need to implement interposing circuitry.
