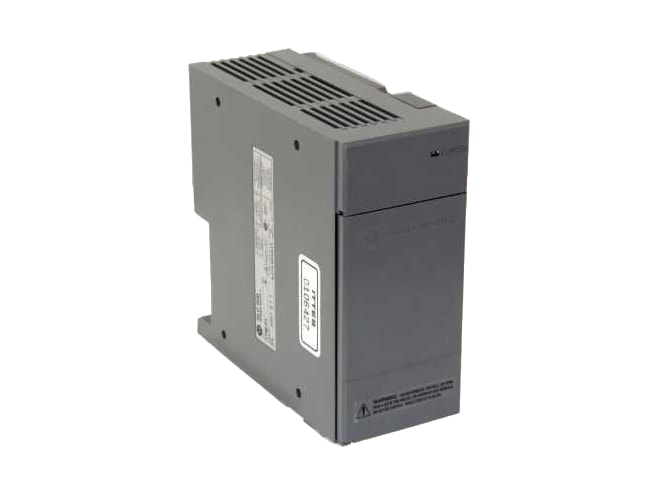

Repair Allen-Bradley 1746-P1 SLC 500 Power Supply

135VA typical line power requirement; 20A max. inrush current.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$142.00
Availability
  • Additional 5 ready to ship within 2-3 days
Part Number
  • 1746-P1REP
Manufactured

Features

  • 85 to 132VAC/170 to 265VAC, 47 to 63 Hz line voltage
  • Internal current capacity:
    • 5VDC: 2A
    • 24VDC: 0.46A
  • 1746-F1 or equivalent fuse protection
  • 200mA at 24VDC user power current capacity
  • 18 to 30VDC at 24VDC user power voltage range
  • 15A max. user-supplied overcurrent protection
  • Isolation: 1800VAC RMS for 1s
  • CPU hold-up time:
    • Full load: 20ms
    • No load: 3000ms

The Allen-Bradley 1746-P1 SLC 500 Power Supply includes a functional LED light to indicate if the system is properly receiving power. The power supply's hold-up time helps prevent corruption of the system in the event of brief power losses.
