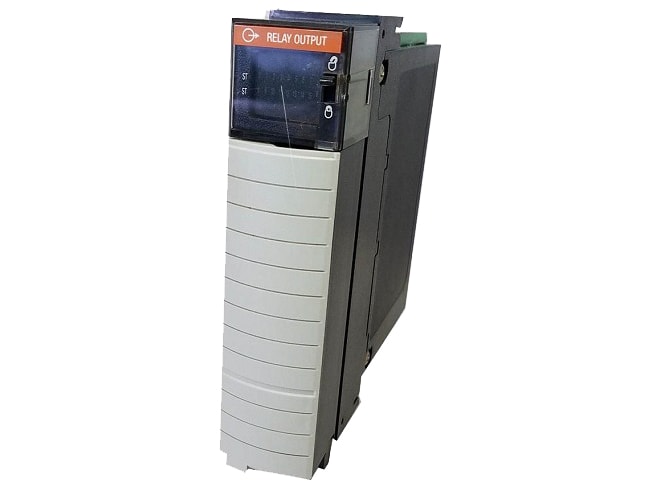

Remanufactured Allen-Bradley 1756-OW16I ControlLogix Discrete Output Module

16 outputs, normally open, individually isolated.

Remanufactured

$233.00
Availability
  • Additional 3 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1756-OW16IRMN
Manufactured

Features

  • C300/R150 pilot duty
  • Operating voltage range:
    • 5 to 125VDC
    • 10 to 240VAC
  • Output voltage range (load dependent):
    • 1A @ 5 to 30VDC
    • 0.5A @ 48VDC
    • 0.22A @ 125VDC
    • 1.5A @ 120VAC 50/60Hz
    • 0.75A @ 240VAC 50/60Hz
  • 10ms max. output delay time, Off to On/On to Off
  • 150mA current draw @ 5.1V or 24V
  • 4.4W total backplane power
  • 4.5W @ 140°F max. power dissipation
  • 15.35 BTU/hr thermal dissipation
  • 1.5mA max. off-state leakage current per point
  • 10mA min. load current per point
  • 100mΩ @ 6V 1 A max. initial contact resistance
  • 1 operation/3s max. switching frequency (0.3Hz at rated load)
  • 1.2ms mean bounce time

The Allen-Bradley 1756-OW16I ControlLogix Discrete Output Module is a DC sourcing, dry contact module. The module supports scheduled outputs, and can be configured to Hold last state, On/Off when faulted, with Off as the default setting. A removable terminal block (RTB) is included.
