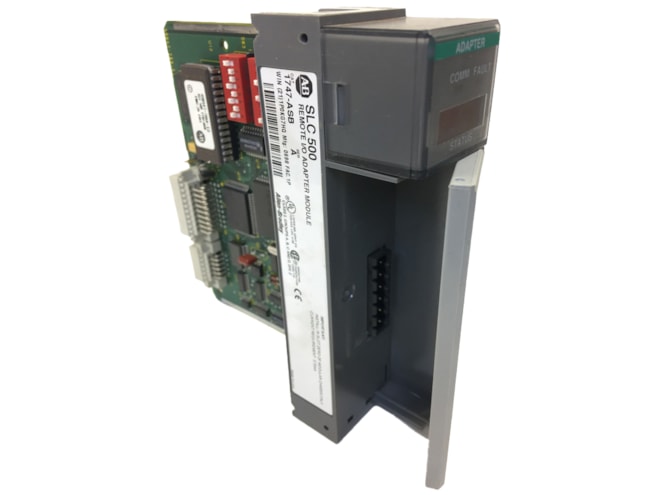

Remanufactured Allen-Bradley 1747-ASB SLC 500 Remote I/O Adapter Module

375mA at 5VDC backplane current consumption.

Remanufactured

$300.00
Availability
  • Additional 7 ready to ship within 2-3 days
Part Number
  • 1747-ASBRMN
Manufactured

Features

  • 1.875W thermal dissipation
  • 32 to 140°F operating temperature
  • -40 to 185°F storage temperature
  • 5 to 95% non-condensing humidity
  • NEMA standard ICS 2-230 noise immunity
  • Vibration:
    • Displacement: 0.015in, peak-to-peak at 5 to 57Hz
    • Acceleration: 2.5Gs at 57 to 2,000Hz
  • 30Gs operating shock
  • Agency certification:
    • UL Listed
    • CSA certified
    • Class I, Division 2 Groups A, B, C, D
    • CE compliant for all applicable directives
    • Marine certified
    • C-tick marked for all applicable acts

The Allen-Bradley 1747-ASB SLC 500 Remote I/O Adapter Module is a single-slot RIO communication link module. It occupies the first slot (slot 0) of a 1746 remote chassis, where the SLC processor normally resides.

The module is an adapter, or slave, on the RIO link, and the master of the remote chassis and remote expansion chassis in which it is installed. Remote expansion chassis are optional. The module acts as a gateway between the scanner and the I/O modules residing in the remote chassis and remote expansion chassis. It maps the image of the I/O modules in its remote chassis and remote expansion chassis directly to the SLC or PLC processor image.

Output data is sent from the scanner of either the SLC or PLC local chassis to the 1747-ASB module across the RIO link. This data is automatically transferred to the output modules across the chassis backplane by the 1747-ASB module. Inputs from the input modules are collected via the backplane by the 1747-ASB module and sent back to the scanner across the RIO link. No user  programming of the 1747-ASB module is necessary.
