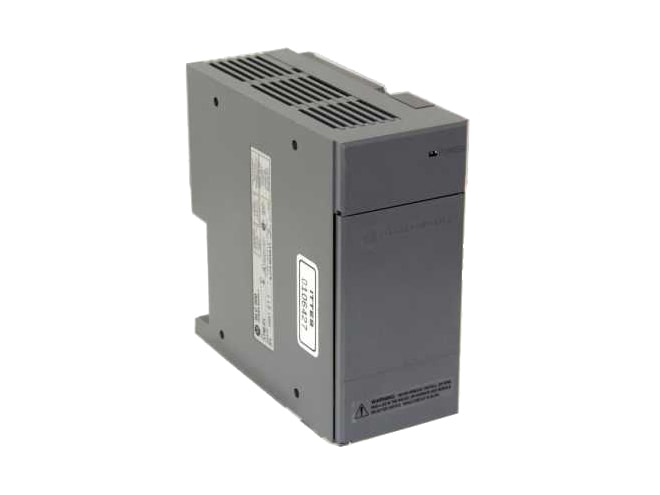

Repair Allen-Bradley 1746-P4 SLC 500 Power Supply
240VA typical line power requirement; 45A max. inrush current.
Remanufactured
-
Additional 3 ready to ship within 2-3 days
- 1746-P4REP
Overview
Features
- 85 to 132/170 to 265VAC, 47 to 63Hz line voltage
- Internal current capacity:
- 10.0A at 5VDC
- 2.88A at 24VDC
- Fuse is soldered in place
- 1A @ 24VDC user power current capacity
- 20.4 to 27.6 VDC @ 24VDC user power voltage range
- 15A max. user-supplied overcurrent protection
- 32 to 140° ambient operating temperature, no derating
- 2,600VDC isolation for 1s
- CPU hold-up time:
- 20ms (full load)
- 3,000ms (no load)
Description
The Allen-Bradley 1746-P4 SLC 500 Power Supply provides backplane power to a local chassis, expansion module, or remote I/O chassis.
SLC 500 controllers continue to operate (hold-up) for a short period of time if the input voltage to the power supply drops below the recommended operating voltage range. The controller continues to scan the user program and control I/O during this time.
SLC 500 controllers turn OFF (stop scanning and disable outputs) if input voltage to the power supply is removed or drops below the recommended operating range for a period exceeding the CPU hold-up time. The controller resumes operation automatically when the input voltage is restored to normal.
If the input voltage to the 1746-P7 power supply falls into a range of 4 to 9V for a period exceeding the CPU hold-up time, the controller turns OFF and will not turn back ON until input voltage is increased to 11VDC.
