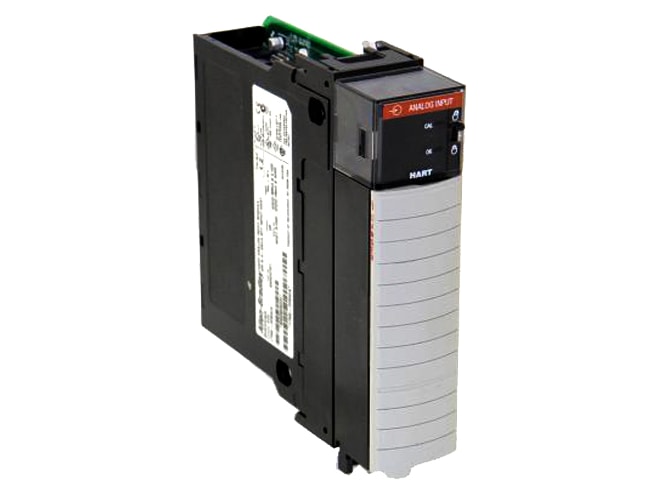

Remanufactured Allen-Bradley 1756-IF8 ControlLogix Analog Input Module

8 input channels: 2 high-speed differential inputs, 4 differential inputs, 8 single-ended inputs.

Remanufactured

$463.00
Availability
  • Additional 3 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1756-IF8RMN
Manufactured

Features

  • Input range:
    • +/-10V
    • 0 to 10V
    • 0 to 5V
    • 0 to 20mA
  • Resolution:
    • +/-10.25V: 320μV/count (15 bits plus sign bipolar)
    • 0 to 10.25V: 160μV/count (16 bits)
    • 0 to 5.125V: 80μV/count (16 bits)
    • 0 to 20.5mA: 0.32μV/count (16 bits)
  • Current draw:
    • 150mA @ 5.1V
    • 40mA @ 24V
  • 1.73W total backplane power
  • Voltage and current ratings:
    • Backplane: 5.1VDC, 150mA max, 24VDC, 40mA max
    • Input voltage range: -10 to 10V
    • Input current range: 4 to 20mA
    • Limited to 100VA
  • 1.73W power consumption
  • Power dissipation:
    • Voltage: 1.73W
    • Current: 2.56W
  • Thermal dissipation:
    • Voltage: 5.89 BTU/hr
    • Current: 8.74 BTU/hr
  • Input impedance:
    • Voltage: 10 MΩ or higher
    • Current: 249Ω

The Allen-Bradley 1756-IF8 ControlLogix Analog Input Module includes eight input channels that are configurable for a variety of voltage and current signals. The module interfaces analog signal generating instruments and devices, including panel meters, signal isolators, signal splitters, transducers, and transmitters.
