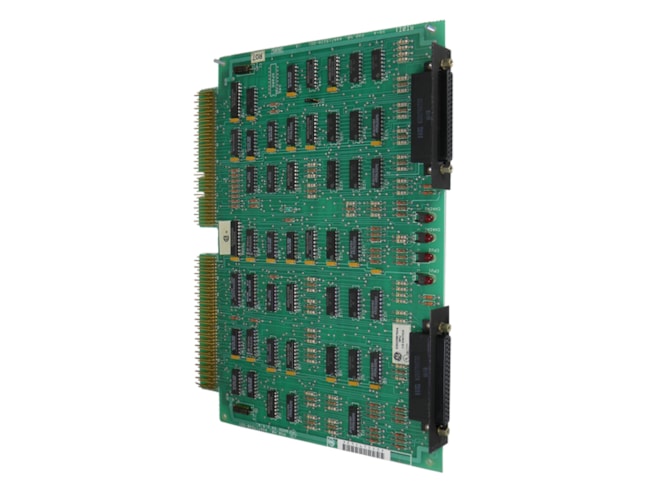

Repair GE-Emerson IC600RB750 Series Six I/O Switch Module

Two parallel bus connectors.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • 4 in stock
  • Additional 2 ready to ship within 2-3 days
Part Number
  • IC600RB750REP
Manufactured
Product Specs

Features

  • 5VDC, 2.0 Amps power requirements (supplied by RPU power supply)
  • Includes circuit board and faceplate

The GE-Emerson IC600RB750 Series Six I/O Switch Module is used in the Redundant Processor Unit (RPU) to interface to and select one of two parallel I/O chains as the Master I/O chain.

Both I/O chains connect to the I/O switch module through two 37-pin D connectors located at the top and bottom positions on the front of the module.

The module transfers the selected I/O chain bus to the RPU backplane bus for use by the CPU switch module.

Two I/O switch modules can be used in an RPU: one for the Main I/O chain, and an optional module for the Auxiliary I/O chain.

A jumper is provided on the module to allow operation with a second I/O chain. Four LED indicators are provided to show CPU and I/O chain status.
