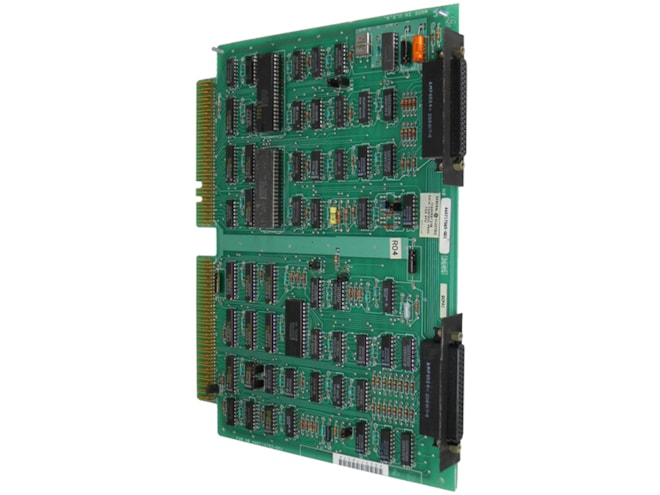

Repair GE-Emerson IC600RB753 Series Six Data Control Module

On-board Direct Memory Access capability.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • 2 in stock
Part Number
  • IC600RB753REP
Manufactured
Product Specs

Features

  • Provides an efficient parallel link to the master or backup CPUs
  • 5VDC, 2.0 Amps power requirement (supplied by RPU power supply)
  • Includes circuit board and faceplate

The GE-Emerson IC600RB753 Series Six Data Control Module contains a 16-bit microprocessor (Intel 8086) that controls Redundant Processor Unit (RPU) parallel communications to both the master and backup CPUs while also monitoring and displaying RPU hardware status. The module maintains CPU synchronization and transfer of I/O and register data between master and standby CPUs.

The module provides two 37-pin, D-type connectors; the top connector is not used, but the bottom connector is connected to the CPU Switch Module, also within the RPU, via a multi-pair cable.
