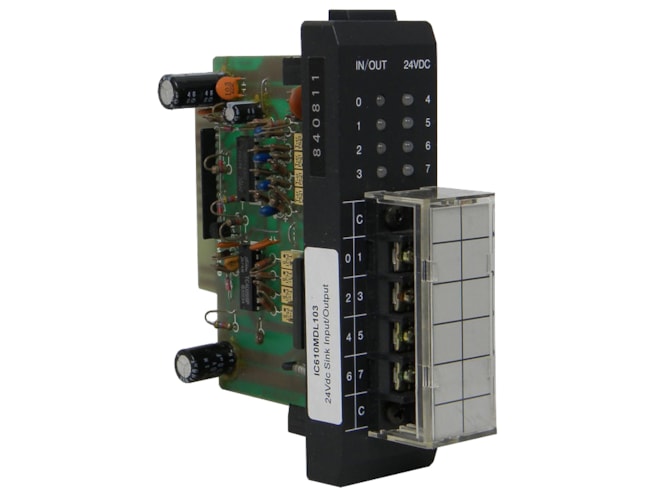

Repair GE-Emerson IC610MDL103 Series One Sink I/O Module

4 inputs, 4 outputs.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • 1 in stock
Part Number
  • IC610MDL103REP
Manufactured
Product Specs

Features

  • Input circuits:
    • 36VDC max. voltage (open circuit)
    • 18mA input current
    • 0 to 3VDC ON level
    • 18 to 36VDC OFF level
    • 4 to 15ms OFF to ON and ON to OFF Response
    • 3mA max. OFF leakage
    • 7mA min. ON current
  • Output circuits:
    • 5 to 24VDC operating voltage
    • 45VDC peak voltage
    • 0.5 Amps max. current
    • 0.1 mA @ 40VDC max. leakage current
    • ON voltage drop (typical):
      • 0.8VDC @ 0.5 Amps
      • 0.65VDC @ 0.1 Amps
    • 1.5VDC @ 0.5 Amps ON voltage drop (max.)
    • 0.1ms OFF to ON and ON to OFF response
    • 3 Amps internal fuse (in output common line)
    • 20mA @ 9VDC internal power consumption
      • Inputs: 14mA for each ON circuit
      • Outputs: 3mA for each ON circuit
    • Units of load:
      • 2 units @ 9VDC
      • 7 units @ 24VDC

The GE-Emerson IC610MDL103 Series One Sink I/O Module provides a dual function by providing 4 input circuits each designed to receive a single discrete (ON/OFF) signal from user supplied devices, plus 4 output circuits each capable of controlling user supplied discrete (ON/OFF) loads. Typical input devices include limit switches, pushbuttons, selector switches, and relay contacts. Typical loads include relay coils, motor starters, solenoid valves, and indicator lights.

24VDC power to sense the state of the inputs is provided by the rack power supply. The 4 output circuits are referenced, through their respective loads, to a single DC power source. The ON/OFF state of each input and output circuit is indicated by an LED.
