Repair GE-Emerson IC610MDL124 Series One I/O Simulator Module

4 to 15ms ON to OFF and OFF to ON response.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • 30 in stock
Part Number
  • IC610MDL124REP
Manufactured
Product Specs

Features

  • Internal power consumption:
    • 10mA @ 9VDC
    • 14mA/Circuit ON @ 24VDC
  • Units of load:
    • 1 unit @ 9VDC
    • 11units @ 24VDC

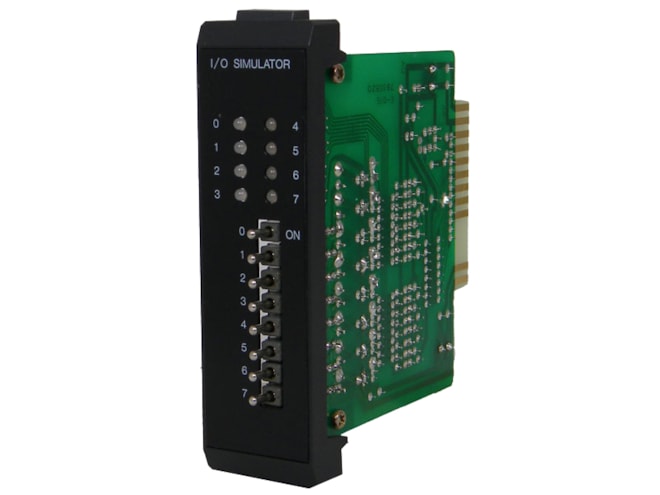

The GE-Emerson IC610MDL124 Series One I/O Simulator Module includes 8 two-position (ON or OFF) switches, each having an associated LED. If switch 1 is turned ON, LED 1 will light. An I/O simulator module uses one I/O slot and the 8 I/O references assigned to that slot. Each of the switches can be programmed as a discrete input device. This module requires no field connections since its function is controlled by programming. The I/O simulator could also be programmed to be used as conditional input contacts for control of output devices.
