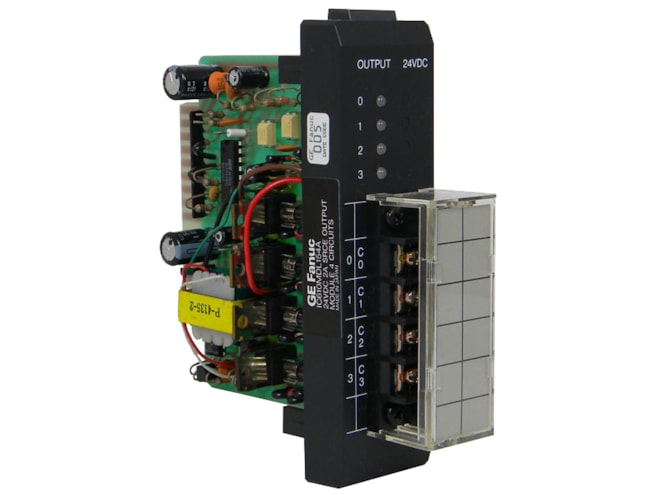

Remanufactured GE-Emerson IC610MDL154 Series One Sink/Source Output Module

4 output points.

Remanufactured

Call for pricing
Availability
  • 2 in stock

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days
Part Number
  • IC610MDL154RMN
Manufactured
Product Specs

Features

  • 5 to 24VDC operating voltage
  • 45VDC peak voltage
  • Max. current:
    • 2 Amps continuous
    • 8 Amps max. peak
  • <0.4mA @ 40VDC max. leakage current
  • ON voltage drop:
    • 1VDC @ 6 Amps
    • 0.6VDC @ 4 Amps
    • 0.3VDC @ 2 Amps
    • 0.15VDC @ 1 Amps
  • 0.1ms OFF to ON and ON to OFF response
  • Logic side circuit indicator
  • 5 Amp replaceable internal fuses (1 for each circuit)
  • Internal power consumed:
    • 12mA @ 9VDC
    • 30mA @ 24VDC
  • Units of load:
    • 2 units @ 9VDC
    • 3 units @ 24VDC

The GE-Emerson IC610MDL154 Series One Sink/Source Output Module provides isolated, fused 24VDC sink or source output circuits each capable of controlling user supplied discrete (ON/OFF) loads. Each circuit is rated at 2 Amps continuous current. Outputs can be connected in parallel to increase output current capacity. Types of loads that can be controlled by this module would include motor starters, relay coils, solenoid valves, and indicator lights. All 4 circuits can be referenced to a separate DC source of power. The circuits on this module can be used as either source or sink outputs, depending on how the load is wired in relation to the load power supply.

Field connections are made to screw terminals on a terminal block mounted on the faceplate. Each terminal will accept up to one No. 12 AWG wire or two No. 14 AWG wires. The ON/OFF state of each circuit is indicated by a corresponding LED on the logic side. This module will consume 8 consecutive discrete references. The 4 references not used as "real world" outputs can be used as internal coils in the user program.
