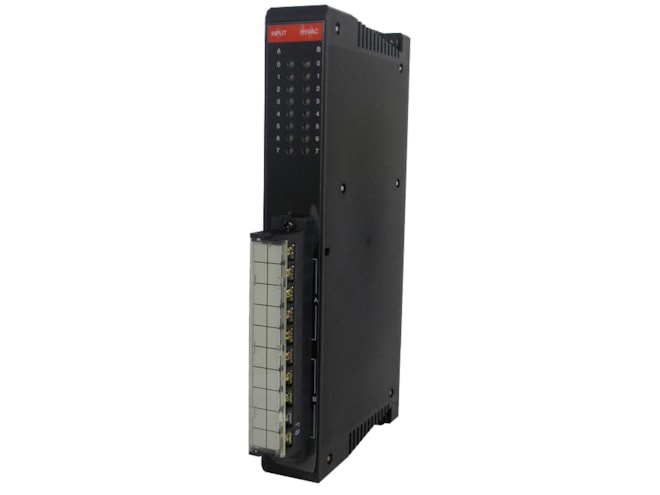

Repair GE-Emerson IC630MDL325 Series Three AC/DC Input Module

Name: Repair GE-Emerson IC630MDL325 Series Three AC/DC Input Module
Availability: BackOrder

16 inputs in two groups of 8.

Repair

Call for pricing

Availability

Usually ships in 3-5 business days

Remanufactured

Call for pricing

Availability

4 in stock

Part Number

IC630MDL325REP

Manufactured

By GE-Emerson

Product Specs

Features

AC input specifications:
- Voltage: 97 to 132VAC, 50 to 60Hz
- Current:
  - 7.5mA (80V, 50Hz)
  - 8.2mA (80V, 60Hz)
  - 12.8mA (133V, 50Hz)
  - 14.1mA (133V, 60Hz)
- ON state:
  - >80VAC
  - >7mA (50Hz)
  - >8mA (60Hz)
- OFF state:
  - <20VAC
  - <2mA (50Hz)
  - <2.5mA (60Hz)
- 10 to 40ms ON delay
- 10 to 60ms OFF delay
DC input specifications:
- Voltage: 80 to 150VDC
- Current:
  - 2.2mA (80V)
  - 4.2mA (150V)
- ON state:
  - >80VDC
  - >2mA
- OFF state:
  - <30VDC
  - <1mA
- 6 to 30ms ON delay
- 15 to 70ms OFF delay
5VDC internal power consumption, 10mA plus 10mA/point

The GE-Emerson IC630MDL325 Series Three AC/DC Input Module is designed for use with an AC/DC voltage source. The voltage source can be 80 to 133VAC or 80 to 150VDC. Note that the common connections are tied together internally.
