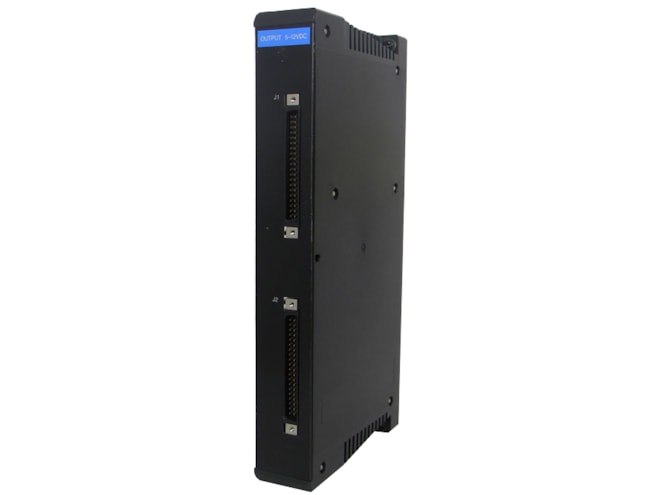

Repair GE-Emerson IC630MDL354 Series Three Output Module

The GE-Emerson IC630MDL354 Series Three Output Module provides circuits each capable of controlling user supplied discrete (ON/OFF) loads. The 32 circuits are provided referenced toa  5 to 12VDC power source that must be supplied by the user. Typical loads include TTL or CMOS circuitry. The circuits are arranged on the module in two groups of 16 circuits. Each of the 16 circuit groups is connected to user loads through an I/O interface cable. Two cables are required for a module. Each cable has a 40-pin connector on one end that mates with a corresponding connector on the faceplate.

When installed in an I/O slot, a 32-point I/O module uses 32 consecutive I/O references, i.e. the 16 references assigned to that slot and the next 16 references. A 32-point I/O module in slot 1 would use references 00-37. In this case, an I/O module installed in slot 2 would have a starting reference number of 40. If an 8-slot base was filled with 32 point I/O modules, that base would contain 256 I/O points (references 000-377, if first base unit).

Initial shipments of this module include two connectors requiring user wiring. Two 10ft I/O interface cables, with a connector wired on one end, are required per module.

Note: The primary function of this module is intended to be as a TTL or CMOS logic interface.
