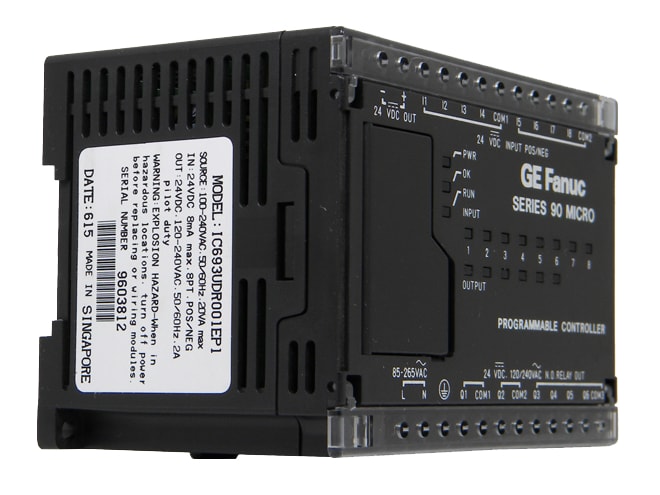

Repair GE-Emerson IC693UDR001 14-Point Micro PLC
8 DC inputs, 6 relay outputs; 100 to 240VAC power supply.
Remanufactured
-
1 in stock
- IC693UDR001REP
- By GE-Emerson
Overview
Features
- 1.8ms/K of logic typical scan rate (Boolean contacts)
- Up to 8 slave devices per network (can be increased with a repeater)
- Output power supplies:
- 24VDC output power supply for input circuits and user devices, 100mA max.
- +5VDC on pin 5 of serial port, 155mA max.
- Provides data retention for 3 to 4 days with the power off at 77°F
Description
The GE-Emerson IC693UDR001 14-Point Micro PLC contains a CPU circuit board, an I/O board, and a power supply board.
The CPU contains and executes the user program and communicates with the programmer (HHP or computer running Logicmaster 90-30/90-20/Micro software).
The I/O board provides the interface to the front panel input, output, and power supply connections for the Micro PLC. The 2 Amp, isolated, normally open output circuits allow the low-level signals from the CPU module to control relay devices. There is no fusing on relay outputs. The user should provide external fusing to protect the outputs. The outputs can be configured as regular outputs or as outputs controlled by the HSCs.
The power supply converts the AC or DC input source power to voltages required for internal circuitry.
