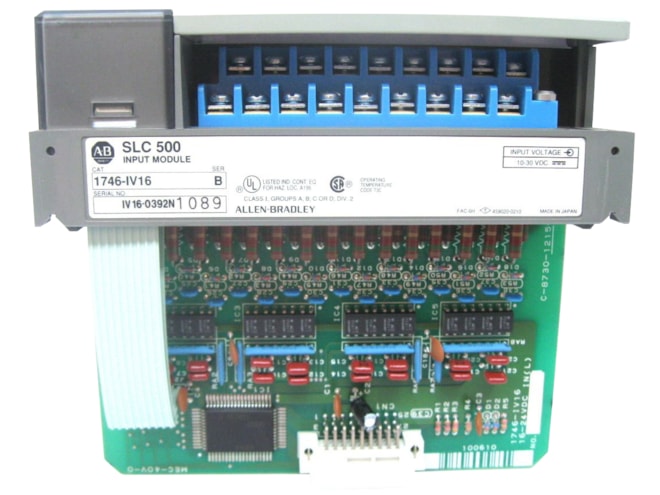

Remanufactured Allen-Bradley 1746-IV16 Current Sourcing DC Input Module

16 inputs and points per common.

Remanufactured

$763.84
Availability
  • 14 in stock
  • Additional 31 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-IV16RMN
Manufactured
Product Specs

Features

  • 24VDC voltage category
  • 10 to 30VDC operating voltage range
  • Backplane current:
    • 85mA at 5V
    • 0mA at 24V
  • 5VDC maximum off state input voltage
  • 1mA maximum off state input current
  • Signal delay:
    • 8ms max ON
    • 8ms max OFF
  • 0.2W per point
  • Thermal dissipation:
    • 0.425W minimum
    • 3.6W maximum

The Allen-Bradley 1746-IV16 Current Sourcing DC Input Module is a general purpose current sourcing module. Terminals have self-lifting pressure plates that accept two 14 AWG (2mm2) wires. LED indicators on the front of the module display the status of each I/O point. Wiring can also be accomplished with a bulletin 1492 interface module and pre-wired cable, sold separately.
