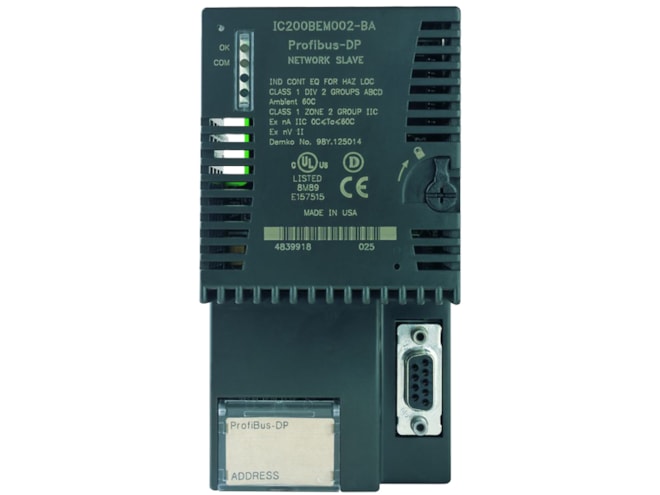

Remanufactured GE-Emerson IC200BEM002 Versamax PROFIBUS-DP Network Slave Module

Exchanges PLC reference table data on the Profibus network.

Remanufactured

$478.00
Availability
  • Additional 2 ready to ship within 2-3 days

Repair

$334.60
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200BEM002RMN
Manufactured
Product Specs

Features

  • 1 to 125 Profibus network address, software-configurable
  • 9.6Kbaud to 12Mbaud, auto-detected Profibus network data rate
  • Indicators:
    • OK LED indicates health of the module
    • Com LED indicates communications status
  • +5V at 350mA power consumption

The GE-Emerson IC200BEM002 Versamax PROFIBUS-DP Network Slave Module can read and write reference table data as though it were conventional bit- and word-type I/O data. Multiple modules may be used in the same Versamax PLC. The module can read up to 244 bytes of data from the network and send up to 244 bytes of output data.

The network slave module (NSM) firmware resides in FLASH memory. This firmware may be upgraded with future versions via serial download from an appropriate PC connected to the serial port of the headend device.
