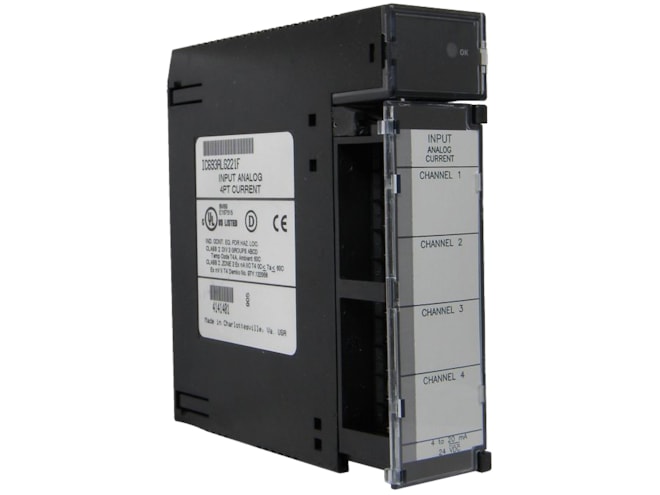

Remanufactured GE-Emerson IC693ALG221 4-Channel Analog Current Input Module

Factory calibrated to 4µA per count.

Remanufactured

$448.00
Availability
  • 4 in stock
  • Additional 12 ready to ship within 2-3 days

Repair

$313.60
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693ALG221RMN
Manufactured
Product Specs

Features

  • Input current ranges:
    • 4 to 20mA
    • 0 to 20mA
  • 2ms update rate
  • Resolution:
    • At 4 to 20mA: 4µA (1LSB = 4µA)
    • At 0 to 20mA: 5µA (1LSB = 5µA)
  • Absolute accuracy: 0.1% full scale + 0.1% reading
  • 200V common mode voltage
  • <1 Least Significant Bit linearity
  • 1,500V isolation between field side and logic side
  • Common Mode Rejection: >70db at DC and 60Hz
  • Cross-Channel Rejection: 80db from DC to 1kHz
  • 250 ohms input impedance
  • 325Hz input filter response
  • Internal power consumption:
    • 100mA from the isolated +24V supply
    • 25mA from +5V bus on the backplane

The GE-Emerson IC693ALG221 4-Channel Analog Current Input Module provides four input channels, each capable of converting an analog input signal to a digital signal for use as required by relevant applications. The module provides two input ranges. The default range is 4 to 20mA with user data scaled so that 4mA corresponds to a count of 0 and 20mA corresponds to a count of 32,000 with each 1,000 counts representing 0.5mA.
