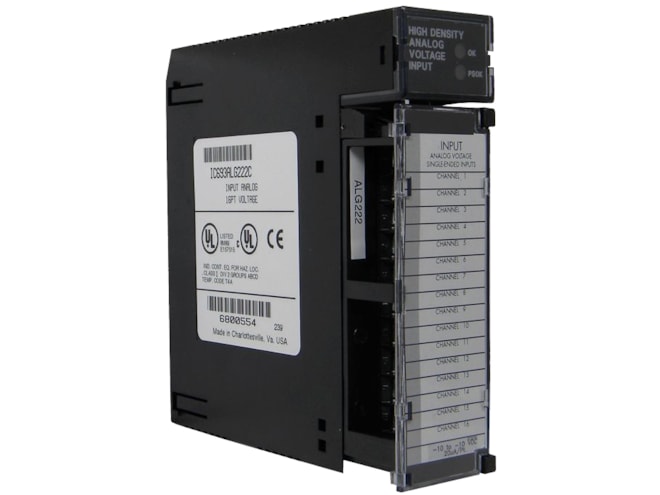

Remanufactured GE-Emerson IC693ALG222 16-Channel Analog Voltage Input Module

1,500V isolation between field side and logic side.

Remanufactured

$478.00
Availability
  • 10 in stock
  • Additional 12 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693ALG222RMN
Manufactured
Product Specs

Features

  • Factory calibrated to:
    • 2.5mV per count on 0V to 10V (unipolar) range
    • 5mV per count on -10 to 10V (bipolar) range
  • Update rate:
    • 6ms (all 16 single-ended channels)
    • 3ms (all 8 differential channels)
  • Resolution:
    • At 0 to 10V: 2.5mV (1 LSB = 2.5mV)
    • At -10 to 10V: 5mV (1LSB = 5mV)
  • Absolute accuracy:
    • ±0.25% of full scale @ 25°C (77°F)
    • ±0.5% of full scale over specified operating temperature range
  • <1 LSB linearity
  • ±11V (bipolar range) common mode voltage - differential
  • >80db from DC to 1kHz cross-channel rejection
  • Input impedance:
    • >500K ohms (single-ended mode)
    • >1M ohms (differential mode)
  • Input filter response:
    • 41Hz (single-ended mode)
    • 82Hz (differential mode)
  • Internal power consumption:
    • 112mA (maximum) from the backplane +5VDC bus
    • 41mA (maximum) from the backplane Isolated +24 VDC supply

The GE-Emerson IC693ALG222 16-Channel Analog Voltage Input Module provides up to 16 single-ended or eight differential input channels, each capable of converting an analog input signal to a digital value for use as required by relevant applications. This module provides two input ranges: 0 to 10V (unipolar), and -10 to 10V (bipolar).
