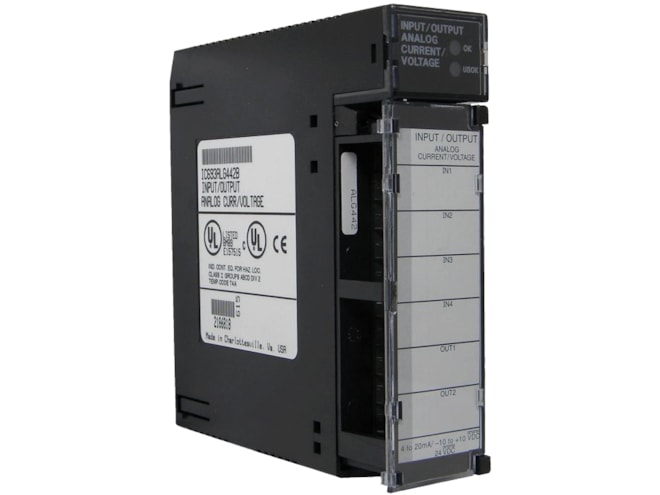

Remanufactured GE-Emerson IC693ALG442 Analog Current and Voltage Combination Module

Name: Remanufactured GE-Emerson IC693ALG442 Analog Current and Voltage Combination Module
Price: 975.0 USD
Availability: InStock

2 single-ended output channels; 4 differential input channels.

Remanufactured

What is remanufactured?

$975.00

Additional 3 ready to ship within 2-3 days

Repair

What is repair?

$780.00

Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number

IC693ALG442RMN

Manufactured

By GE-Emerson

Product Specs

Features

Analog Output Specifications:
- 4ms update rate
- Output Ranges:
  - 0 to 20mA (current)
  - 4 to 20mA (current)
  - -10 to 10V (bipolar) (analog)
  - 0 to 10V (unipolar) (analog)
- Resolution:
  - 0 to 20mA: 0.625µA (1 LSB = 0.625µA)
  - 4 to 20mA: 0.5µA (1 LSB = 0.5µA)
  - -10 to 10V: 0.3125mV (1 LSB = 0.3125mV)
  - 0 to 10V: 0.3125mV (1 LSB = 0.3125mV)
Analog Input Specifications:
- 8ms update rate
- Input ranges:
  - 0 to 20mA
  - 4 to 20mA
  - 4 to 20mA Enhanced
- 5 µA (1 LSB = 5 µA) resolution, all ranges
Power requirements:
- 20 to 30VDC external supply voltage range
- 10% voltage ripple
- Current consumption:
  - 95mA from internal 5V supply
  - 129mA from external user supply

The GE-Emerson IC693ALG442 Analog Current and Voltage Combination Module provides up to 4 differential input current or voltage channels and 2 single-ended output channels with either current loop outputs or voltage outputs. Each channel can be individually configured for the current or voltage range, as applicable, required for your application. All module configuration is done through software, except for a jumper required for selecting the current input mode. All ranges can be configured using either the Logicmaster 90-30/20/Micro programming software configurator function or the Series 90-30 Hand-Held Programmer.
