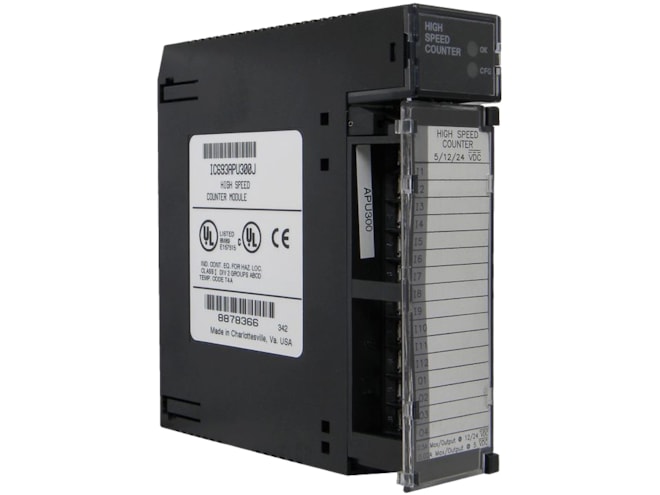

Remanufactured GE-Emerson Series 90-30 IC693APU300 High Speed Counter Module

Senses inputs, counts, and responds with outputs without requiring a CPU connection.

Remanufactured

$348.00
Availability
  • 6 in stock
  • Additional 5 ready to ship within 2-3 days

Repair

$243.60
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693APU300RMN
Manufactured
Product Manual Product Specs

Features

  • Counts:
    • Up or down
    • Up and down
    • Difference between two changing values
  • Provides 1, 2, or 4 counters of differing complexity
  • Can be installed in any Series 90-30 baseplate
  • Configured with:
    • Hand-Held Programmer
    • Logicmaster 90-30/20
    • VersaPro software
  • No jumpers to be set
  • LEDs indicate operating and configuration parameter status

The GE-Emerson Series 90-30 IC693APU300 High Speed Counter Module is a single-slot module that can be used in applications where pulse input rates exceed the input capability of the PLC or where too large a percentage of PLC processing capability would be required. The High Speed Counter provides direct processing of rapid pulse signals up to 80kHz for industrial applications such as meter proving, turbine flowmeter, velocity measurement, material handling, motion control, and process control. With direct processing, the High Speed Counter module is able to sense inputs, count, and respond with outputs without needing to communicate with a  CPU. It can be configured to count either up or down, to count both up and down, or to count the difference between two changing values. The module can be configured to provide 1, 2, or 4 counters of differing complexity.
