Remanufactured GE-Emerson IC693DNS201 DeviceNet Slave Module

450mA backplane current consumption at 5VDC (typical).

Remanufactured

$1,128.00
Availability
  • 2 in stock

Repair

$789.60
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693DNS201RMN
Manufactured
Product Specs

Features

  • -40°F to 185°F storage temperature
  • 32°F to 140°F operating temperature
  • Current consumption from DeviceNet network:
    • 50mA at 24VDC (typical)
    • 80mA at 24VDC (peak)

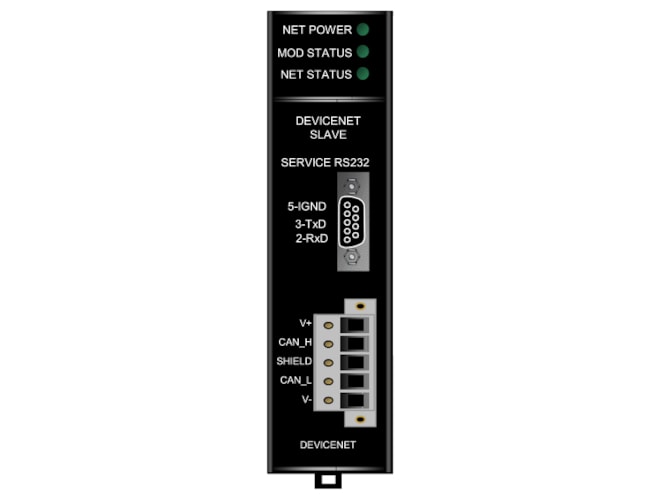

The GE-Emerson IC693DNS201 DeviceNet Slave Module interfaces a Series 90-30 PLC to a DeviceNet bus that is controlled by another master device. The module's three DeviceNet-compliant LEDs show its operating and communications status. The RS-232 serial port (a 9-pin male D-connector) is used for a computer connection during firmware upgrades. The DeviceNet connector is a removable spring-clamp terminal. It provides bus continuity and can be removed from the module without disrupting bus operation.
