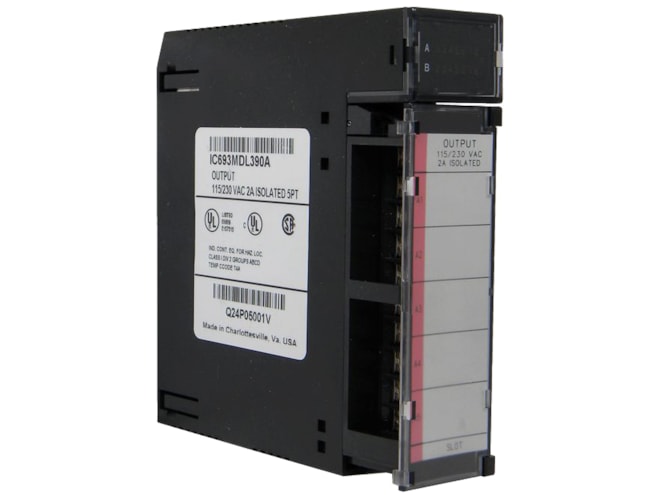

Remanufactured GE-Emerson IC693MDL390 120/240V and 2 Amp Isolated AC Output Module
Provides 5 isolated output points, each with a separate common.
Remanufactured
-
12 in stock
-
Additional 54 ready to ship within 2-3 days
For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.
- IC693MDL390RMN
- By GE-Emerson
Overview
Features
- 120/240VAC rated voltage
- 85 to 264VAC, 50/60Hz output voltage range
- Isolation:
- 1,500V between field side and logic side
- 500V between each output
- Output current:
- 2 Amps max. per point
- 5 Amps max. per module at 113°F
- 2 Amps max. per module at 140°F
- Output characteristics:
- 25 Amps max. inrush current for one cycle
- 100mA minimum load current
- 1.5V maximum output voltage drop
- Output leakage current:
- 3mA max. at 120VAC
- 6mA max. at 240VAC
- 1ms max. On response time
- 1/2 cycle max. Off response time
- 110mA power consumption (all outputs on) form 5V bus on backplane
Description
The GE-Emerson IC693MDL390 120/240V and 2 Amp Isolated AC Output Module includes output circuits that are each isolated from the others relative to the AC power source; commons are not tied together inside the module. This allows each output circuit to be used on different phases of the AC supply, or they can be powered from the same supply. Outputs are individually fused with a 3 amp fuse and an RC snubber is provided for each output to protect against transient electrical noise on the power line. This module provides a high-degree of inrush current (greater than 10x the rated current) making the outputs suitable for controlling a wide range of inductive and incandescent loads. AC Power to operate the loads connected to the outputs must be supplied by the user. This module requires an AC power source, it cannot be used with a DC power source.
LED indicators that provide the ON/OFF status of each point are located at the top of the module. These LEDs are arranged in two horizontal rows with eight green LEDs in each row and a red LED centered between and to the right of the two rows. This module uses the first five LEDs, labeled A1 through 5 in the top row for output status. The red “F” LED is a blown fuse indicator that turns ON if any fuse should blow. An insert goes between the inside and outside surface of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface. The outside left edge of the insert is color-coded red to indicate a high-voltage module. This module can be installed in any I/O slot in a Series 90-30 PLC system, and it should be configured as an 8-point output with programs referencing the five least significant bits.
