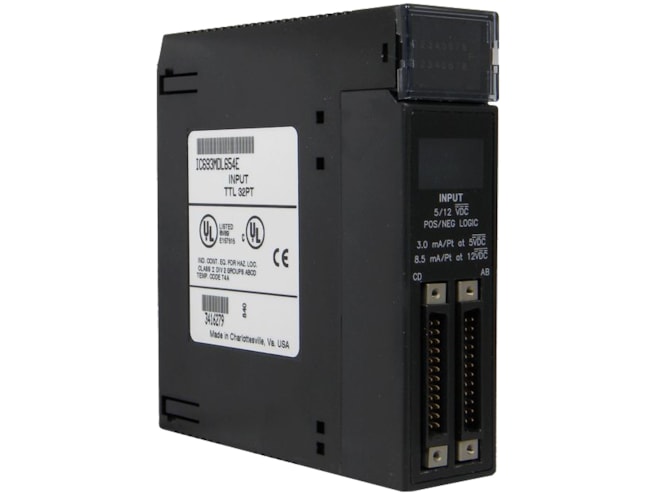

Remanufactured GE-Emerson IC693MDL654 5-12V TTL Positive/Negative Logic Input Module

Provides 32 discrete TTL voltage threshold input points.

Remanufactured

$215.00
Availability
  • 32 in stock
  • Additional 55 ready to ship within 2-3 days

Repair

$150.50
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL654RMN
Manufactured
Product Specs

Features

  • 5 to 12VDC rated voltage, Positive or Negative Logic
  • 0 to 15VDC input voltage range
  • Isolation:
    • 1,500V between field side and logic side
    • 250V between groups
  • Input current:
    • 3.0mA (typical ON current @ 5VDC)
    • 8.5mA (typical ON current @ 12VDC)
  • Input characteristics:
    • 4.2 to 15VDC on-state voltage
    • 0 to 2.6VDC off-state voltage
    • 2.5mA minimum on-state current
    • 1.2mA max. off-state current
    • 1ms max. On and Off response time
  • Internal power consumption:
    • 195mA max. from 5V bus on backplane
    • 96mA typical from user input supply @ 5VDC and all inputs on
    • 272mA typical from user input supply @ 12VDC and all inputs on
  • +5 volts DC ±5% isolated 5V supply
  • 150mA typical current limit

The GE-Emerson IC693MDL654 5-12V TTL Positive/Negative Logic Input Module includes inputs arranged in four isolated groups of eight (A1 - A8, B1 - B8, C1 - C8, and D1 - D8). Each group has its own common. The inputs are positive or negative logic inputs and will operate at levels up to 15V.

A single, regulated +5V supply (current limited to approximately 150 mA) is available through the I/O connectors on the front of the module. This supply is generated on the module and is isolated from the backplane.  Its power input comes from the +5V logic supply on the PLC backplane. By installing jumpers on the appropriate pins on the I/O connector, you can choose to power the inputs from this internal supply instead of powering them with an external user-provided supply. If this internal supply is used to power the inputs, additional loading will be placed on the PLC’s +5V power supply. Backplane isolation between the field side and logic side is provided by opto-couplers on the module. There are no special fault or alarm diagnostics reported.  LED indicators (labeled A1 - A8, B1 - B8, C1 -  C8, D1 - D8) at the top of the module provide the ON/OFF status of each input point.

The module is configured as a 32-point input type and uses 32 bits of discrete %I input data. Current into an input point results in a logic 1 in the input status table. This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.

Connections to the input circuits are made from the user’s input devices to two male (pin-type) 24-pin connectors (Fujitsu FCN-365P024-AU)  mounted on the front of the module. The connector mounted on the right of the module (front view) interfaces with groups A and B. The connector on the left side of the module interfaces with groups C and D.

Wiring from the module’s connectors to field devices is made through a cable having a mating female connector on one end and stripped and tinned wires on the other end.
