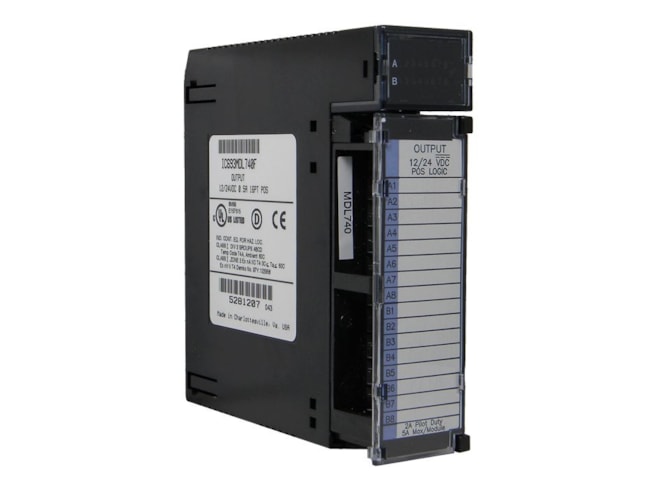

Remanufactured GE-Emerson IC693MDL740 12/24VDC Positive Logic 0.5 Amp Output Module

Provides 16 output points in two groups of eight with a common power output terminal for each group.

Remanufactured

$148.00
Availability
  • 25 in stock
  • Additional 67 ready to ship within 2-3 days

Repair

$103.60
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL740RMN
Manufactured
Product Specs

Features

  • 12 to 24VDC output voltage range (+20%, -15%)
  • Isolation:
    • 1,500V between field side and logic side
    • 500V between groups
  • Output current:
    • 0.5 Amps max. per point
    • 2 Amps max. per common
  • Output characteristics:
    • 4.78 Amps inrush current for 10ms
    • 1V max. output voltage drop
    • 1mA max. off-state leakage
    • 2ms max. On and Off response time
  • 110mA power consumption (all outputs on) from 5V bus on backplane

The GE-Emerson IC693MDL740 12/24VDC Positive Logic 0.5 Amp Output Module sources current to the loads from the user common or positive power bus. The output device is connected between the negative power bus and the module output. The output characteristics are compatible with a wide range of user-supplied load devices, such as motor starters, solenoids, and indicators. Power to operate the field devices must be supplied by the user.

LED indicators that provide each point's ON/OFF status are located at the top of the module. This LED block has two horizontal rows with eight green LEDs in each row with the top row labeled A1 through 8 (points 1 through  8) and the bottom row labeled B1 through 8 (points 9 through 16). An insert goes between the inside and outside surfaces of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface. The outside left edge of the insert is color-coded blue to indicate a low-voltage module. There are no fuses on the module.

The module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
