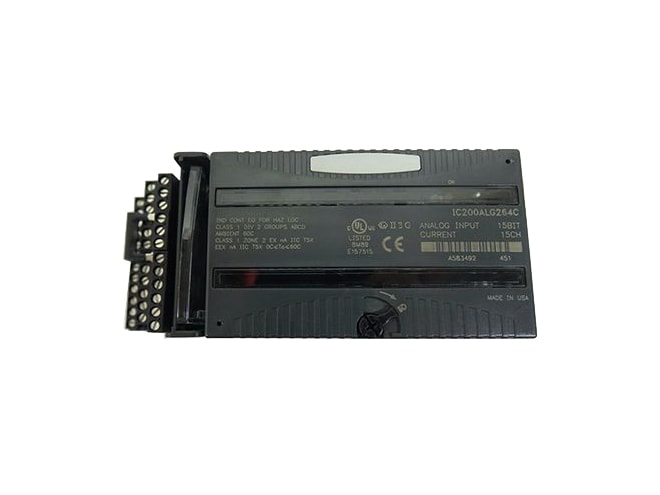

Remanufactured GE-Emerson IC200ALG264 VersaMax Analog Input Module

Provides an interface to 15 current inputs.

Remanufactured

$628.32
Availability
  • 8 in stock
  • Additional 6 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200ALG264RMN
Manufactured
Product Specs

Features

  • 250VAC continuous; 1,500VAC for 1 min isolation user input to logic (optical) and to frame ground
  • OK LED indicates successful power-up and configuration.
  • 5V output: 100mA max. backplane current consumption
  • Diagnostics:
    • Loss of internal power
    • Open wire detection of 4 to 20mA signals only

The GE-Emerson IC200ALG264 VersaMax Analog Input Module includes 15 single-ended channels in one group. The module receives power from the backplane power supply. No external power source is required for module operation. Power for the user's transceivers must be supplied from an external source. The module features jumper selection of either a 4 to 20mA or a 0 to 20mA operating range.
