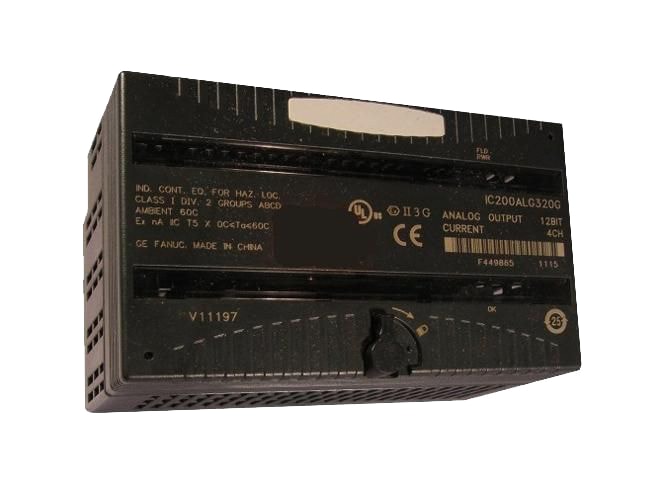

Remanufactured GE-Emerson IC200ALG320 VersaMax Analog Output Module

Provides four 4mA to 20mA analog current-sourcing outputs.

Remanufactured

$305.00
Availability
  • Additional 1 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200ALG320RMN
Manufactured
Product Specs

Features

  • 250VAC continuous; 1,500VAC for 1min user input to logic (optical) and to frame ground
  • FLD PWR LED indicates field power is present
  • OK LED indicates backplane power is present
  • 5V output: 50mA max. backplane current consumption
  • Loss of user side power diagnostics

The GE-Emerson IC200ALG320 VersaMax Analog Output Module includes a modest amount of overrange current, approximately 20.38mA of output current per channel is available to drive output loads. An external power supply is required for the outputs. Intelligent processing for the module is performed by the CPU or Network Interface Unit. The module receives 4 words of analog output data.
