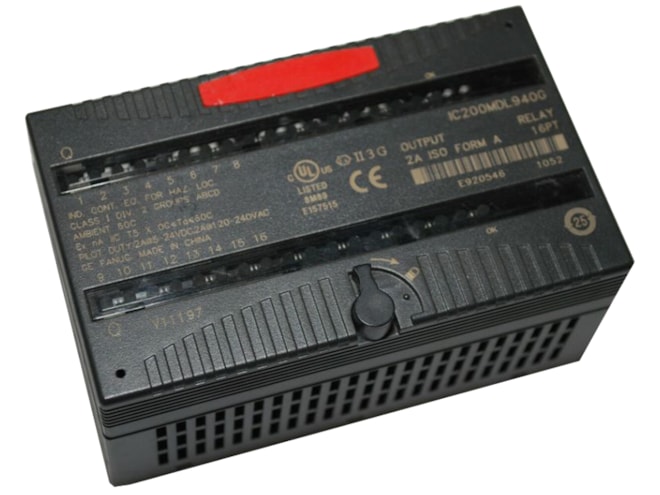

Remanufactured GE-Emerson IC200MDL940 VersaMax Isolated Relay Output Module

Provides 16 individually-isolated Form A relay outputs.

Remanufactured

Call for pricing
Availability
  • Out of Stock

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200MDL940RMN
Manufactured
Product Specs

Features

  • Isolation:
    • 250VAC continuous; 1,500VAC for 1min user input to logic (optical) and frame to ground
    • 250VAC continuous; 1,500VAC for 1min group-to-group
    • 250VAC continuous; 1,500VAC for 1min point-to-point
  • One green LED per point shows individual point on/off state
  • OK LED indicates backplane power is present
  • 5V output: 490mA max. backplane current consumption
  • External power supply:
    • 0 to 125VDC, 5/24/125VDC nominal
    • 0 to 265VAC (47to 63Hz), 120/240VAC nominal

The GE-Emerson IC200MDL940 VersaMax Isolated Relay Output Module includes a closed contact when the host CPU is active and the corresponding output logic bit is "1."

Power for the module's operation comes from the backplane. Loads must be powered by an external source. Intelligent processing for this module is performed by the CPU or NIU.
