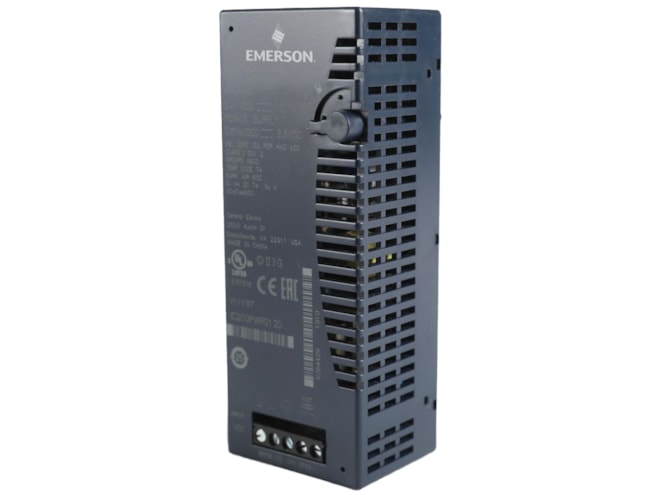

Remanufactured GE-Emerson IC200PWR001 VersaMax 24VDC Power Supply

Provides backplane power for CPU, NIU, and I/O modules.

Remanufactured

$47.04
Availability
  • 14 in stock
  • Additional 6 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200PWR001RMN
Manufactured
Product Specs

Features

  • 18 to 30VDC, 24VDC nominal input voltage
  • 11W input power
  • 10ms holdup time
  • Inrush current:
    • 20 Amps at 24VDC
    • 25 Amps at 30VDC
  • 5VDC, 3.3VDC output voltage
  • Short circuit, overload, and reverse polarity protection
  • Output current:
    • Total: 1.5 Amps max.
    • 3.3VDC output: 0.25 Amps max.
    • 5VDC output: (1.5 Amps to l3.3V) max.

The GE-Emerson IC200PWR001 VersaMax 24VDC Power Supply supplies up to 1.5 Amps output current via 3.3V and 5V outputs, with up to 0.25 Amp on the 3.3V output. This powers most installations.

When mounted on the CPU or NIU module, the power supply serves as the main supply for the station. It can also be used as a supplemental power supply when mounted on a Booster Carrier Power Supply.
