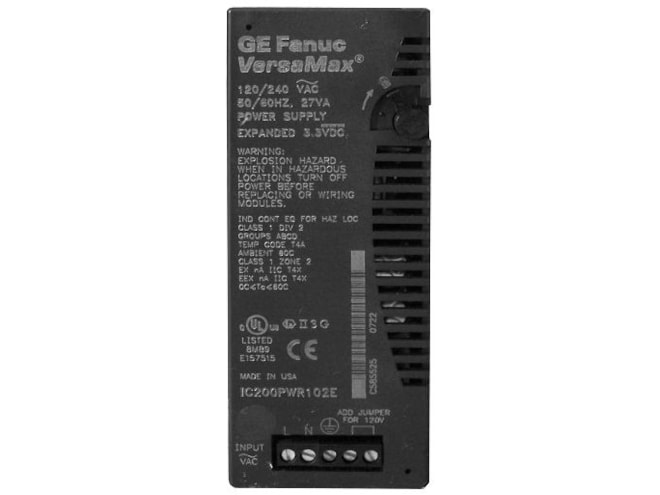

Remanufactured GE-Emerson IC200PWR102 Versamax 120/240VAC Expanded 3.3V Power Supply

Provides backplane power for CPU, NIU, and I/O modules.

Remanufactured

$72.80
Availability
  • Out of Stock

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200PWR102RMN
Manufactured
Product Specs

Features

  • Input voltage:
    • 85 to 132VAC with jumper installed, 120VAC nominal
    • 176 to 264VAC without jumper installed, 240VAC nominal
  • 27VA input power
  • 47 to 63Hz frequency
  • 20ms holdup time
  • 5VDC, 3.3VDC output voltage
  • Short circuit and overload protection
  • Output current:
    • Total: 1.5 Amp max.
    • 3.3VDC output: 1.0 Amp max.
    • 5VDC output: (1.5A to l3.3V) max.

The GE-Emerson IC200PWR102 Versamax 120/240VAC Expanded 3.3V Power Supply provides up to 1.5 Amps output current via 3.3 Volt and 5 Volt outputs, with up to 1.0 Amp on the 3.3V output. When mounted on the CPU or NIU module, this power supply serves as the main power supply for the station. It can also be used as a supplemental power supply when mounted on a Power Supply Booster Carrier.
