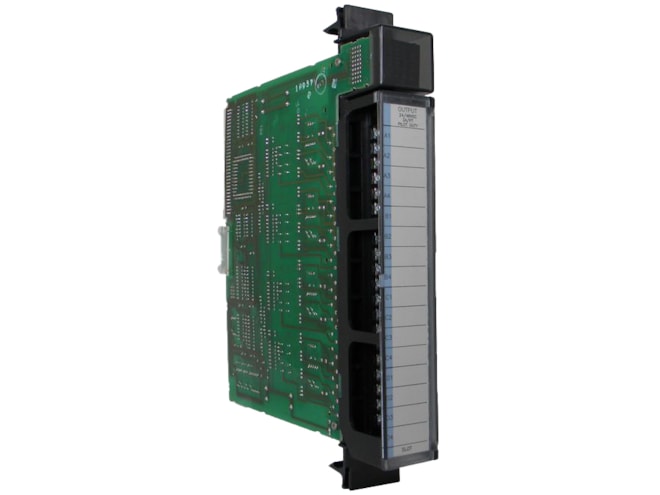

Remanufactured GE-Emerson IC697MDL740 Series 90-70 Discrete Output Module

24/48VDC, 2 Amp, 16 points - 4 isolated groups of 4 points each.

Remanufactured

$675.00
Availability
  • 5 in stock
  • Additional 5 ready to ship within 2-3 days

Repair

$540.00
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC697MDL740RMN
Manufactured
Product Specs

Features

  • 2 Amp capacity per point
  • High inrush capacity (10x rated current)

The GE-Emerson IC697MDL740 Series 90-70 Discrete Output Module provides 16 output points in four isolated groups of four points each. Each group of four outputs is individually fused with a 10 Amp fuse.

The module provides a high degree of inrush current that makes the outputs suitable for a wide range of loads that have such characteristics.

LED indicators which give the ON-OFF status of each point on the logic (PLC) side of the circuit as well as an LED to indicate the status of the fuse are located together at the top of the module.

The module is mechanically keyed to ensure correct replacement with a similar type in the field. I/O references are user configurable without the use of jumpers or DIP switches on the module.

Configuration is done using the configuration function of the MS-DOS or Windows programming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed on the programming device. The programming device can be an IBM XT, AT, PS/2, or compatible PC.
