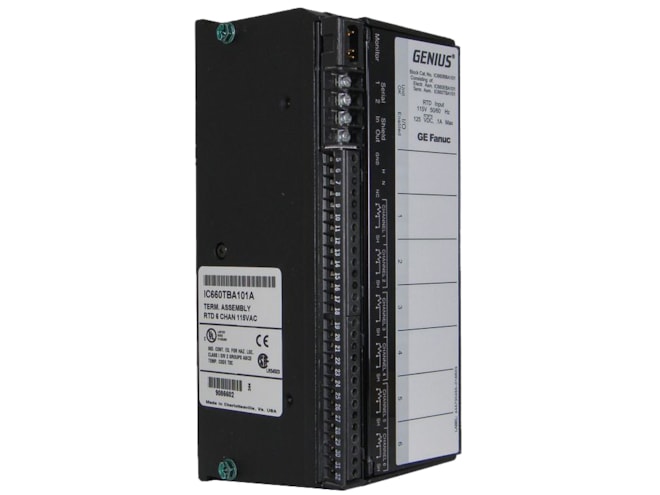

Remanufactured GE-Emerson IC660BBA101 Genius RTD Input Block

Provides six input circuits, in 3 groups of 2 circuits each.

Remanufactured

Call for pricing
Availability
  • 1 in stock

Repair

$2,076.00
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660BBA101RMN
Manufactured
Product Specs

Features

  • Unit OK, I/O Enabled LEDs
  • 1,500V block to block isolation
  • 300V group to group isolation
  • 7W max. heat dissipation
  • 18 to 56VDC, 10% max. ripple power supply voltage at 7W
  • 10ms power supply dropout time
  • Configurable features:
    • Alarm thresholds
    • RTD resistance
    • Alpha type
    • Linearization
    • Input filter time

The GE-Emerson IC660BBA101 Genius RTD Input Block monitors temperature inputs from Resistive Temperature Detectors (RTDs). An RTD Input block has six input circuits, in three groups of two circuits each. Group to group isolation is 300 volts. Each input can be used with platinum, nickel, or copper RTDs. Input data for each circuit is linearized according to the type of RTD selected. Input data is reported to the CPU in engineering units of tenths of degrees Celsius, tenths of degrees Fahrenheit, tenths of Ohms, or counts.

RTD blocks are factory-calibrated; there is no need for subsequent recalibration.

In addition, the block’s automatic diagnostics can pinpoint the cause of installation and run-time errors:

  • Input Short detection
  • Internal Fault detection
  • Wiring Error detection
  • Open Wire detection
  • Overrange and Underrange input indication
  • High and Low input alarms

Fault reporting can be enabled or disabled circuit-by-circuit.
