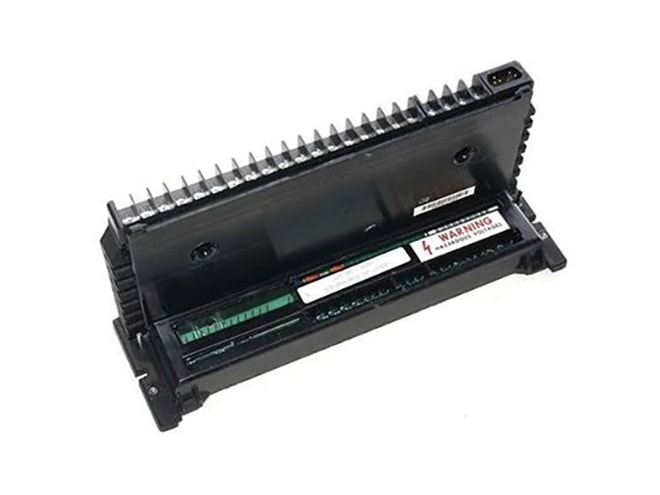

Remanufactured GE-Emerson IC660TBD023 Genius Terminal Assembly

Block designed to be the wiring interface between the I/O block and field modules in a Genius I/O control system.

Remanufactured

$128.00
Availability
  • 1 in stock
  • Additional 6 ready to ship within 2-3 days

Repair

$89.60
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660TBD023RMN
Manufactured

Features

  • 16 I/O circuits
  • 24 Volts DC
  • 0 to 60 degrees Celsius operating temperature

The GE-Emerson IC660TBD023 Genius Terminal Assembly is equipped with diagnostic features capable of identifying excessive temperatures, open wires in the tristate inputs, overload situations, and no load situations. It is intentionally designed with an open architecture.

Under steady state conditions, the IC660TBD023 terminal block exhibits an output current of 2 Amps per circuit. It can withstand a maximum inrush current of 10 Amps for a duration of 10 milliseconds, while the output off-state leakage current measures 1 milliamp.

The IC660TBD023 Terminal Assembly can be securely screwed into the block, ensuring resistance to vibrations that may occur during operation. It offers additional wiring terminals, which are advantageous for expanding the field wiring capabilities.
