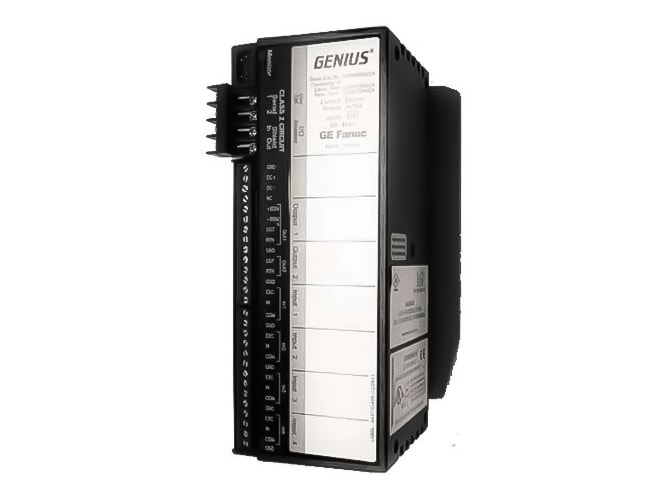

Remanufactured GE-Emerson IC660TBA106 Genius Terminal Assembly
A heavy-duty industrial terminal assembly unit that offers high levels of connectivity. .
Remanufactured
-
Additional 3 ready to ship within 2-3 days
For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.
- IC660TBA106RMN
- By GE-Emerson
Overview
Features
- 115 Volts AC/125 Volts DC
- 0 to 60 degrees Celsius operating temperature
- 6 analog input circuits
Description
The GE-Emerson IC660TBA106 Genius Terminal Assembly facilitates the field wiring connections between the I/O block and the field devices. Its sturdy and compact design guarantees durability even in demanding industrial environments. This module is positioned between the IC660BBA106 I/O Block and the IC660EBA106 Electronics Assembly within the system. The wiring specifications of the terminal assembly are contingent upon the requirements and specifications of the compatible I/O block.
The IC660TBA106 Terminal Assembly consists of 32 screw-type terminals. To ensure proper compatibility, it is designed with slotted mechanical keying, allowing it to fit only with a compatible electronics assembly. Terminals 5 to 32 serve as interfaces for various devices, including an input power supply, field devices, and a bus switching module. Terminal 5 acts as the ground terminal, ensuring the block's safety, and it is connected to the block chassis. To power the block, the DC power source should be connected to Terminals 6 and 7.
